| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Material | |
| Contact Plating | |
| Impedance | |
| Insulation Resistance | |
| Mounting Type | |
| Termination Method | |
| Working Voltage |

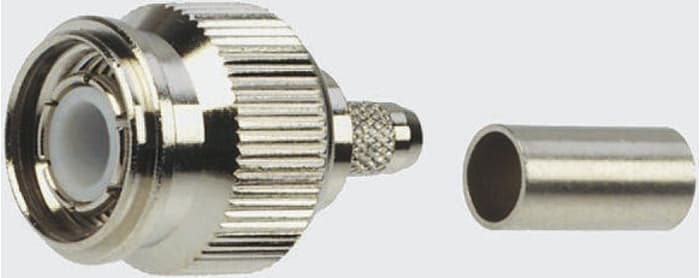

This Telegartner J01012A2288 is a TNC Straight Plug connector designed for cable mounting with a crimp termination method. It features a 75 Ohm impedance and a straight body orientation.
The connector operates within a temperature range of -65°C to +165°C and has an operating frequency range of 0 to 4GHz. The contact material is Beryllium Copper, plated with Gold over Nickel over Copper, ensuring durability and conductivity.
This TNC series connector is a commonly used coaxial connector, similar in size to BNC connectors but with a threaded coupling mechanism. It is suitable for applications requiring vibration resistance, such as signal, data, and video transmission. TNC connectors are known as a low-cost, high-frequency solution for coaxial connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.00 | $3.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The impedance of the terminal strip is 75 ohms.
The operating frequency range is from 0 to 4GHz.
The contact material is Beryllium Copper.
The maximum operating temperature is +165°C.
The insulation resistance is 5 GΩ.
The voltage proof is 1.5 kV.
