| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Group | |
| Dimensions | |
| Durability | |
| Impedance | |
| Insulation Resistance | |
| Return Loss | |
| Temperature Range |

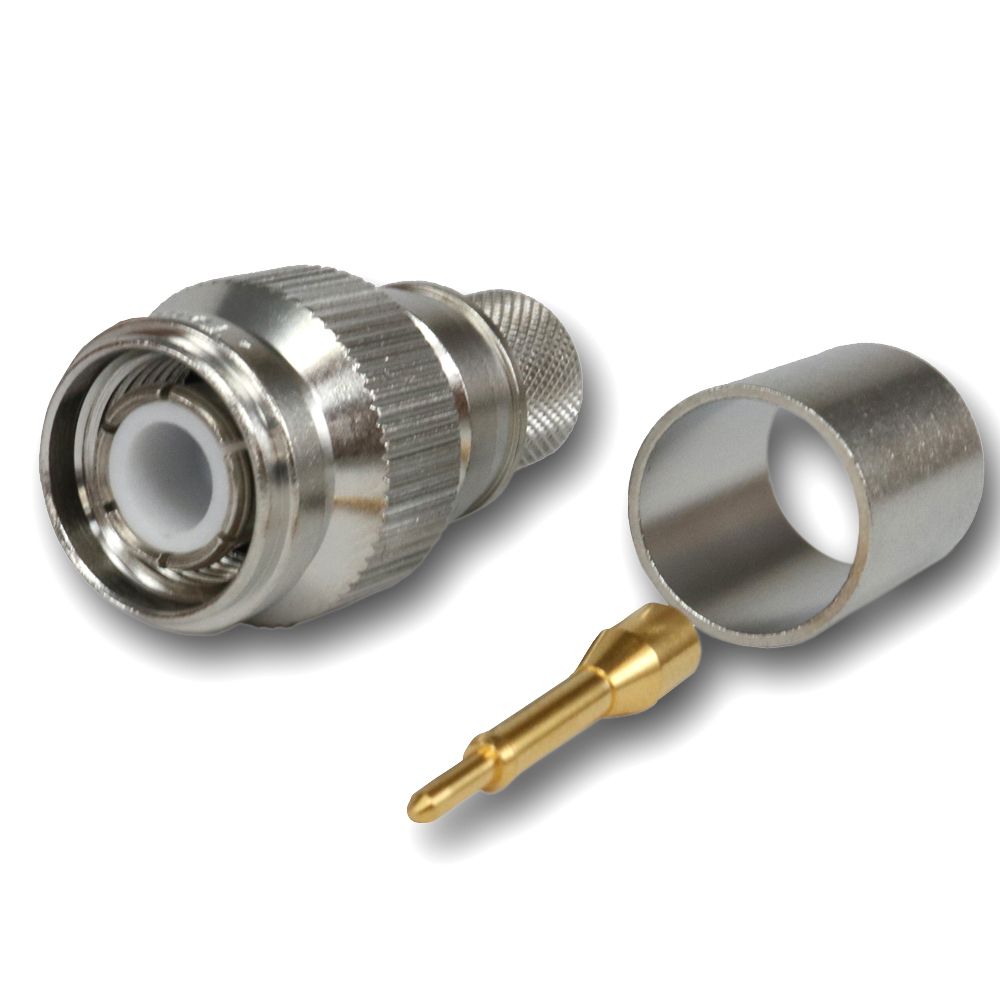

The Telegartner J01010A0049 is a professional-grade TNC straight plug connector designed for crimp termination. It features a 50 Ohm impedance and supports operation up to 11 GHz, making it suitable for various high-frequency signal and data transmission applications.
This connector is built with durable materials, including CuBe2/CuNi1Pb1(C97) for spring contacts, CuZn39Pb3 for the outer conductor and other metal parts, and PTFE/PE for insulators. The inner conductor is finished with Cu1Ni2Au0.8, and the outer conductor with Cu2Ni5. It offers a contact resistance of ≤ 10 mΩ for the inner conductor and ≤ 2.5 mΩ for the outer conductor, with an insulation resistance of ≥ 5 GΩ.
The TNC series connectors are known for their threaded coupling mechanism, providing vibration resistance. The J01010A0049 has dimensions of a=36.2 mm and b=14.5 mm. It operates within a temperature range of -65 to 165°C and has a durability of ≥ 500 mating cycles. Mating face sealing meets IP 68 standards when mated.
This connector is compatible with cable group G37 (2.7/7.25) and requires a specific crimp die (N01003A0030) for assembly. It is supplied in a standard package of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -65 to 165 °C.
The connector supports both 50Ω and 75Ω impedance.
The maximum operating frequency is up to 11 GHz for the 50Ω configuration.
The connector withstands at least 500 mating cycles, with gold plating on the inner conductor enabling up to 1000 cycles.
The mating face sealing is IP68 when mated.
The connector is designed for cable group G37 (2.7/7.25).
