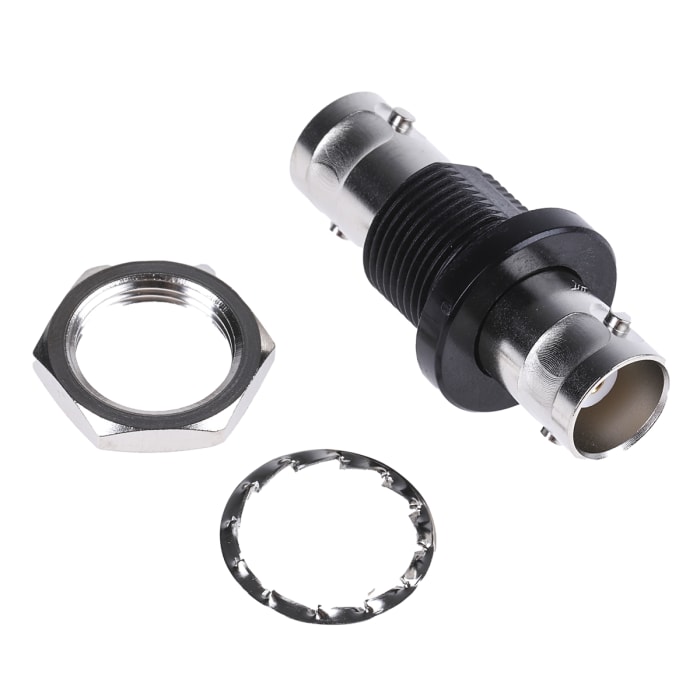

J01004A1333 The Telegartner J01004A1333 is a BNC RF adapter with a 50 Ohm impedance and a 4GHz operating frequency. It features a straight orientation and panel mount capability.
Mfr Part #:

J01004A1333

Available from 1 distributors
Mfr Name: Telegartner
Telegartner
The Telegartner J01004A1333 is a BNC RF adapter with a 50 Ohm impedance and a 4GHz operating frequency. It features a straight orientation and panel mount capability.
✓ Total Stock: 6 pcs
$ Price Range: $0.38

J01004A1333 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
6 pcs
On Request
6 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

J01004A1333 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Frequency
Insulation Resistance
Length
Mating Cycles
Mounting Type
Weight
View Similar Products (0)

J01004A1333 Description

Short technical summary and product information.

This Telegartner J01004A1333 is a BNC RF adapter designed for signal transmission, data, and video applications. It offers a standard 50 Ohm impedance and operates up to 4GHz.



The adapter features a straight orientation and a panel mount design, suitable for integration into various systems. The construction includes a copper zinc alloy body and gold-plated contacts for reliable performance. With a mating life of over 500 cycles, it is built for durability.



Electrical characteristics include a contact resistance of less than 20 mΩ and an insulation resistance greater than 500 MΩ at 50 Hz. The voltage proof is rated at a minimum of 1.5 kVeff. The adapter complies with RoHS3 standards.



Key specifications include a length of 36mm and a weight of 1g. It is designed for use with panels up to 6mm thick.

J01004A1333 Quick Information

Product Type: RF Adapter
Canonical Name: Telegartner J01004A1333 BNC RF Adapter
Subcategory: BNC

J01004A1333 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

J01004A1333 Estimated Pricing

Qty Low High
1+ $0.38 $0.38

Estimated market price range - modelled values for guidance only, not live distributor offers.

J01004A1333 Features

  • 50 Ohm impedance for RF applications.
  • Operates at frequencies up to 4GHz.
  • Straight orientation for signal integrity.
  • Panel mount design for easy integration.
  • RoHS3 compliant for environmental standards.

J01004A1333 Applications

  • Ideal for RF signal transmission.
  • Suitable for data communication systems.
  • Used in video signal routing.
  • Reliable for test and measurement setups.

J01004A1333 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the impedance of the Telegartner J01004A1333 RF adapter?

The impedance of the Telegartner J01004A1333 RF adapter is 50 Ohms.

What is the maximum operating frequency for the J01004A1333 adapter?

The J01004A1333 adapter has a maximum operating frequency of 4GHz.

What type of mounting does the Telegartner J01004A1333 support?

The Telegartner J01004A1333 supports panel mounting.

What is the contact resistance of this BNC adapter?

The contact resistance is less than 20 mΩ.

What is the mating cycle rating for the J01004A1333?

The J01004A1333 has a mating cycle rating of over 500 cycles.
