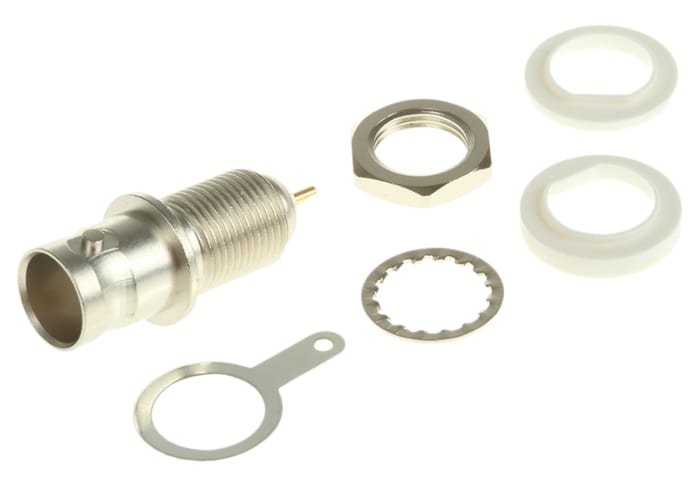

J01003B1286 The Telegartner J01003B1286 is a female BNC coaxial connector with 75 Ohm impedance. It features a straight, panel mount design with solder termination.
Mfr Part #:

J01003B1286

Available from 1 distributors
Mfr Name: Telegartner
Telegartner
The Telegartner J01003B1286 is a female BNC coaxial connector with 75 Ohm impedance. It features a straight, panel mount design with solder termination.
✓ Total Stock: 1 pcs
$ Price Range: $0.38

J01003B1286 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

J01003B1286 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Material
Contact Plating
Country of Origin
Failure Rate
Impedance
Orientation
Product Type
Termination Style
View Similar Products (0)

J01003B1286 Description

Short technical summary and product information.

This Telegartner J01003B1286 is a female BNC coaxial connector designed for panel mounting. It offers a 75 Ohm impedance and a straight body orientation with solder termination.



The connector operates at frequencies up to 4 GHz and has a wide operating temperature range from -65°C to 165°C. The body is plated with nickel, and the contacts are made of gold-plated beryllium copper alloy.



Featuring a bayonet coupling mechanism, this connector ensures a secure connection. It is suitable for signal, data, and video transmission applications. The IP54 rating between a mated plug and jack indicates protection against dust and splashing water.

J01003B1286 Quick Information

Product Type: BNC Connector
Series: BNC
Canonical Name: Telegartner BNC Series Panel Mount Female BNC, 75 Ω, Straight Body Solder Coaxial Connector
Subcategory: Coaxial Connectors

J01003B1286 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

J01003B1286 Estimated Pricing

Qty Low High
1+ $0.38 $0.38

Estimated market price range - modelled values for guidance only, not live distributor offers.

J01003B1286 Features

  • Female BNC coaxial connector
  • 75 Ohm impedance
  • Panel mount, straight orientation
  • Solder termination
  • Up to 4 GHz operating frequency

J01003B1286 Applications

  • Suitable for RF signal transmission applications.
  • Used in test and measurement equipment.
  • Ideal for video and data communication systems.
  • Applicable in military and aerospace connectors.
  • Suitable for high-frequency signal routing.

J01003B1286 FAQs

7 frequently asked questions generated from this part’s specifications.
What type of coaxial connector is the Telegartner J01003B1286?

The Telegartner J01003B1286 is a BNC coaxial connector.

What is the impedance of this BNC connector?

This BNC connector has an impedance of 75 Ohms.

How is the Telegartner J01003B1286 mounted?

The Telegartner J01003B1286 is a panel mount connector.

What is the maximum operating frequency for this connector?

The maximum operating frequency for this connector is 4 GHz.

What is the operating temperature range for the J01003B1286?

The operating temperature range is from -65°C to 165°C.

What type of coupling mechanism does this connector use?

This connector uses a bayonet coupling mechanism.

What is the IP rating between a mated plug and jack?

The IP rating between a mated plug and jack is IP54.
