| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Cable Type | |
| Contact Material | |
| Contact Plating | |
| Durability | |
| Frequency Range | |
| Impedance | |
| Insulation Resistance | |
| Insulator Material | |
| Mating Cycles | |
| Mounting Type | |
| Return Loss | |
| SVHC Present | |
| Temperature Range | |
| Termination Style | |
| Working Voltage |

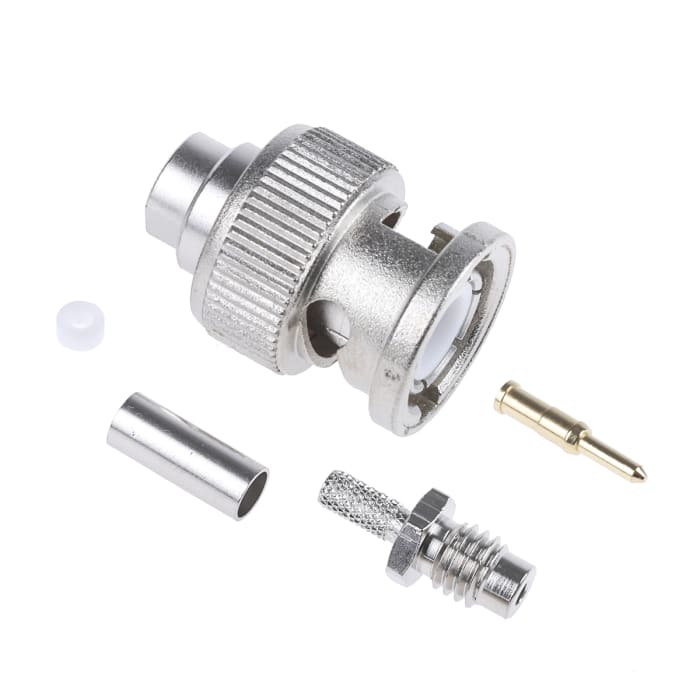

The Telegartner J01000A1294 is a professional-grade BNC straight plug connector designed for coaxial cable termination. It features a 50 Ohm impedance and operates reliably up to 4 GHz, making it suitable for various signal, data, and video transmission applications.
This connector utilizes a bayonet coupling mechanism for secure and easy connection and disconnection. It is constructed with durable materials, including a brass inner conductor, PTFE insulator, and nickel-plated body, with gold plating on the center contact for enhanced conductivity. The operating temperature range is -65°C to 165°C, ensuring performance in diverse environmental conditions.
The J01000A1294 is designed for crimp termination and is compatible with cable types such as RG-316/U. Its mechanical characteristics include a durability of at least 500 mating cycles, with 1000 mating cycles specified for gold-plated inner conductors.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 Ohm.
Up to 4 GHz.
RG316/U cable.
-65°C to +165°C.
Minimum 500 mating cycles, with gold-plated inner conductor rated for 1000 cycles.
500 Veff at 50 Hz.
Minimum 20 dB.
