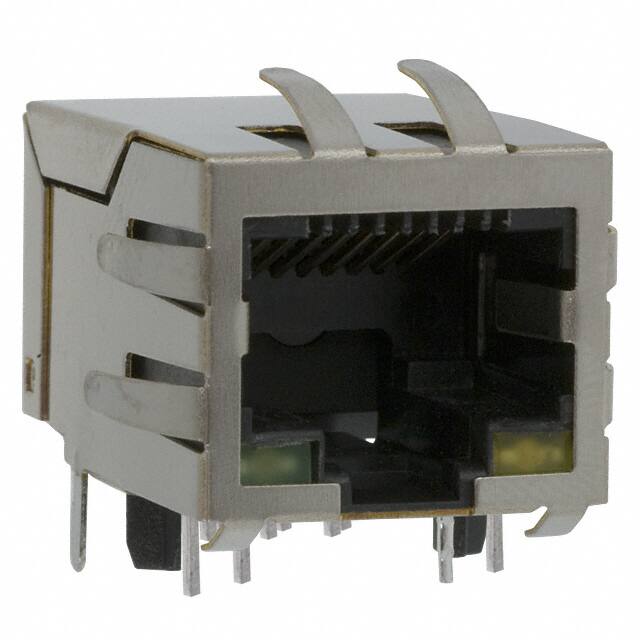

The Pulse Electronics J0026D21BNL is a single-port RJ45 modular jack with integrated magnetics, designed for 10/100 Base-TX Fast Ethernet applications. It features a shielded construction with an EMI finger for enhanced electromagnetic interference protection. The connector is through-hole mounted with a right-angle (90°) orientation and a tab-down design, making it suitable for standard PCB layouts.
This jack includes a 1CT:1 turns ratio for both transmit and receive channels and provides a minimum hipot isolation of 2250 VDC. Electrical performance includes typical insertion loss of -1 dB from 1 to 65 MHz, return loss of -20 dB from 1 to 10 MHz, and crosstalk of -40 dB from 1 to 30 MHz. The operating temperature range is 0°C to +70°C.
The connector has gold-plated phosphor bronze contacts and a height above board of 13.84 mm. It includes a board guide feature for alignment during assembly. The housing is made of thermoplastic rated UL 94 V-0, and the part is specified with MSL 3 for moisture sensitivity.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.64 | $9.64 |
| 10+ | $8.23 | $8.23 |
| 25+ | $7.15 | $7.15 |
| 50+ | $6.94 | $6.94 |
| 100+ | $6.65 | $6.65 |
| 250+ | $6.00 | $6.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is 0°C to +70°C.
It uses through hole mounting with solder termination.
Yes, it is shielded and includes an EMI finger.
The turns ratio is 1CT:1 for both transmit and receive channels.
The minimum hipot rating is 2250 VDC.
The height above board is 13.84 mm (0.545 inches).
The LED colors are green and yellow.
