Mfr Part #:

J0012D21NL

Name: J0012D21NL
SKU: J0012D21NL

Mfr Name: Pulse Electronics

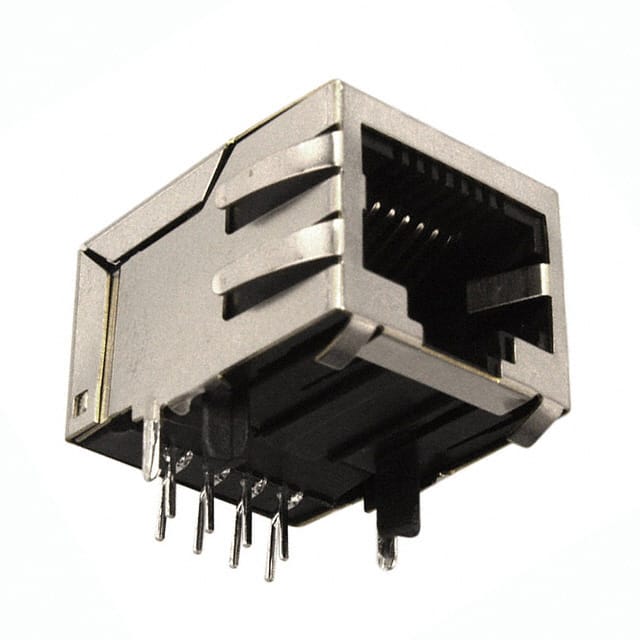

CONN JACK 1PORT 100 BASE-TX PCB

Stock on Request

J0012D21NL Description

Short technical summary and product information.

CONN JACK 1PORT 100 BASE-TX PCB

J0012D21NL Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

J0012D21NL Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.

View All Alternate Parts

J0011D21NL

Pulse Electronics

The J0011D21NL is a modular connector jack with a single port supporting 100BASE-TX Ethernet connections, suitable for PCB mounting.

View Part

J00-0061NL

Pulse Electronics

J00-0061NL is a 1 Port RJ45 modular connector jack with integrated magnetics from Pulse Electronics. It features through hole mounting, shielding with EMI finger, and supports 10/100 Base-TX Ethernet.

View Part

J0018D21NL

Pulse Electronics

CONN JACK 1PORT 100 BASE-TX PCB

View Part

Home

Account

Category	Modular Connector Jacks With Magnetics
Manufacturer Name	Pulse Electronics
Applications	10/100 Base-TX, AutoMDIX
Connector Type	RJ45
Contact Finish	Gold
Contact Material	Phosphor Bronze
Features	Board Guide
Height Above Board	0.545" (13.84mm)
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Cores per Jack	4
Number of Ports	1
Number of Rows	1
Operating Temperature	0°C ~ 70°C
Orientation	90° Angle (Right)
Shielding	Shielded, EMI Finger
Tab Direction	Down
Termination	Solder
