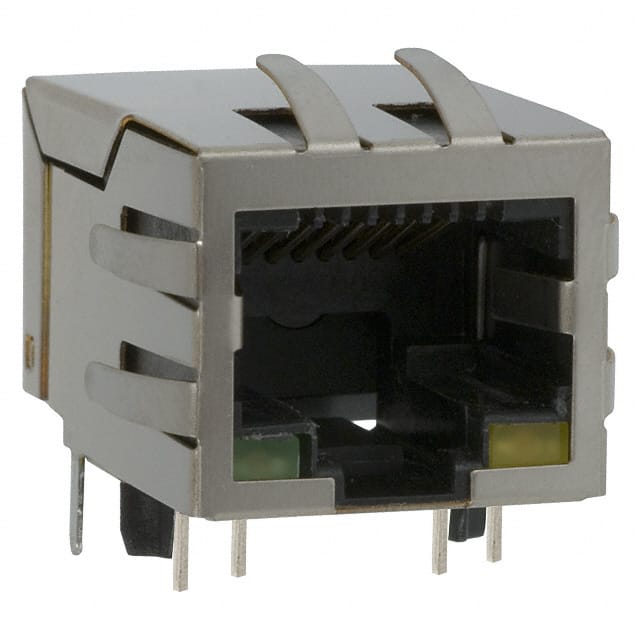

The J00-0065NL is a 1x1 RJ45 modular connector jack with integrated magnetics from Pulse Electronics. It is designed for 10/100 Base-TX Ethernet applications with AutoMDIX support. The connector features a tab-down orientation and right-angle (90°) mounting, making it suitable for PCB edge applications. It has a through-hole solder termination and is shielded with an EMI finger for improved electromagnetic compatibility. The jack includes green and yellow LED indicators for link/activity status. Electrical specifications include a minimum OCL of 350 µH at 8mA bias, minimum isolation voltage of 1500 Vrms, and hipot voltage of 2250 VDC. Insertion loss is -1 dB typical from 1-65 MHz, return loss is -40 dB typical from 1-30 MHz, and crosstalk is -30 dB typical from 1-50 MHz. The operating temperature range is 0°C to 70°C. The connector is RoHS compliant and has MSL 3 rating. It is suitable for CAT 5 and CAT 6 Fast Ethernet cables.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.29 | $7.29 |
| 10+ | $6.54 | $6.54 |
| 25+ | $5.07 | $5.07 |
| 1,000+ | $4.84 | $4.84 |
| 2,500+ | $4.64 | $4.64 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 4 cores per jack.
Through hole mounting with solder termination.
0°C to 70°C.
Green and yellow.
Yes, shielded with EMI finger.
10/100 Base-TX with AutoMDIX.
Minimum 1500 Vrms.
