IXTQ130N10T The IXTQ130N10T is an N-Channel MOSFET from IXYS designed for high-power applications. It features a 100V drain-source voltage and a 130A continuous current rating.
Mfr Part #:

IXTQ130N10T

Available from 3 distributors
Mfr Name: IXYS
IXYS
The IXTQ130N10T is an N-Channel MOSFET from IXYS designed for high-power applications. It features a 100V drain-source voltage and a 130A continuous current rating.
✓ Total Stock: 6,338 pcs
$ Price Range: $0.99

IXTQ130N10T Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3,222 pcs
On Request
3222 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
3,016 pcs
On Request
3016 pcs On Request 1 On Request On Request 20+ On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request 20+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IXTQ130N10T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Industrial Grade
Input Capacitance (Ciss) (Max) @ Vds
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Supplier Device Package
Supplier Package
Tape & Reel
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

IXTQ130N10T Description

Short technical summary and product information.

The IXTQ130N10T is a power MOSFET manufactured by IXYS, categorized as an N-Channel device. It is designed for robust performance with a maximum drain-source voltage (Vdss) of 100V and a continuous current rating of 130A at a case temperature (Tc).



Key electrical characteristics include a maximum on-resistance (Rds On) of 9.1mOhm at 25A and 10V gate drive, a gate charge (Qg) of 104nC at 10V, and an input capacitance (Ciss) of 5080pF at 25V. The gate threshold voltage (Vgs(th)) is 4.5V at 250µA, with a maximum gate-source voltage (Vgs) of ±20V.

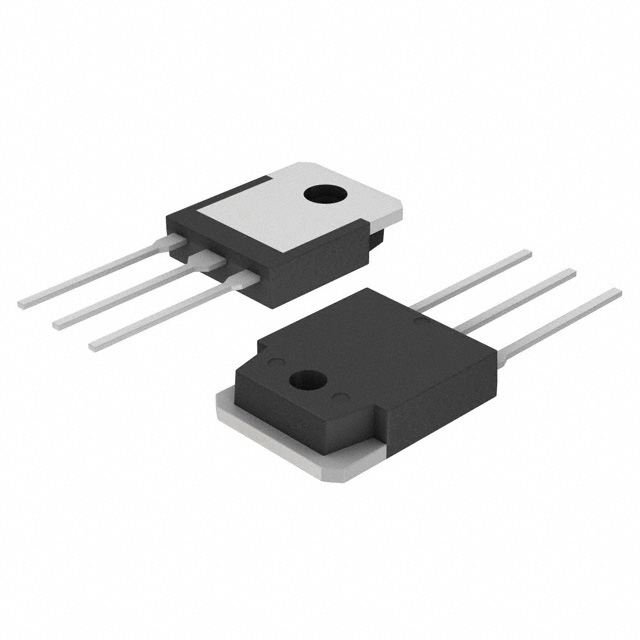

This MOSFET is housed in a TO-3P-3, SC-65-3 package, suitable for through-hole mounting. It operates within a wide temperature range of -55°C to 175°C (TJ), with a maximum power dissipation of 360W (Tc). The RoHS status is listed as RoHS3 Compliant, and it has a Moisture Sensitivity Level (MSL) of 1.

IXTQ130N10T Quick Information

Product Type: MOSFET
Canonical Name: IXTQ130N10T N-Channel MOSFET
Subcategory: N-Channel

IXTQ130N10T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IXTQ130N10T Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

IXTQ130N10T Features

  • N-Channel MOSFET with 100V drain-source voltage.
  • High continuous current rating of 130A.
  • Low on-resistance of 9.1mOhm at 25A.
  • Wide operating temperature range of -55°C to 175°C.
  • TO-3P package for through-hole mounting.

IXTQ130N10T Applications

  • Suitable for high-power switching circuits.
  • Used in power supply applications.
  • Ideal for motor control systems.
  • Applicable in industrial power electronics.

IXTQ130N10T FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum drain-source voltage for the IXTQ130N10T?

The maximum drain-source voltage (Vdss) for the IXTQ130N10T is 100V.

What is the continuous current rating of the IXTQ130N10T MOSFET?

The IXTQ130N10T has a continuous current rating of 130A at the case temperature.

What is the on-resistance of the IXTQ130N10T at specified conditions?

The maximum on-resistance (Rds On) for the IXTQ130N10T is 9.1mOhm when measured at 25A and 10V.

What is the operating temperature range for this MOSFET?

The IXTQ130N10T operates between -55°C and 175°C (TJ).

What type of package is the IXTQ130N10T in?

The IXTQ130N10T is supplied in a TO-3P-3, SC-65-3 package.

How is the IXTQ130N10T mounted?

This MOSFET is designed for through-hole mounting.
