| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request | |
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Industrial Grade | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

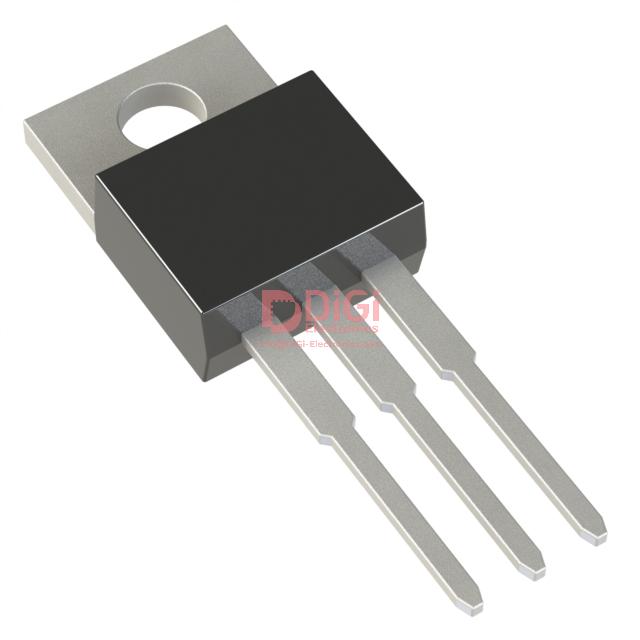

The IXYS IXTP60N10T is a high-performance N-Channel Power MOSFET designed for demanding applications. It offers a drain-source voltage (Vds) of 100V and a continuous drain current (Id) of 60A at 25°C.
This MOSFET boasts an ultra-low on-resistance (Rds On) of just 18mOhm maximum at 25A and 10V gate drive, ensuring efficient power transfer and minimizing heat generation. Its avalanche rating and fast intrinsic diode make it robust and reliable for switching applications.
The device operates within a wide temperature range of -55°C to 175°C (TJ), with a maximum power dissipation of 176W at 25°C. The TO-220-3 package with through-hole mounting is suitable for various power circuits.
Key applications include automotive systems like motor drives and 42V power buses, DC/DC converters, off-line UPS, and primary switches for 24V and 48V systems. Its high power density and ease of mounting make it a versatile component for power management solutions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-to-source voltage (Vdss) is 100V.
The maximum gate-to-source voltage (Vgs) is ±30V.
The continuous drain current (Id) is 60A.
The maximum operating temperature is 175°C.
It comes in a TO-220-3 package.
Yes, it is RoHS3 compliant.
