| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
246 pcs
|
246 pcs | On Request | 1 | On Request | On Request | 1503+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Industrial Grade | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

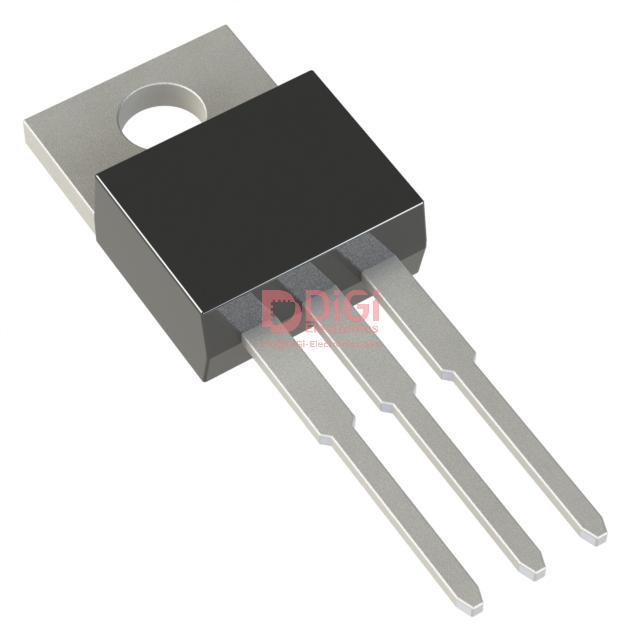

The IXYS IXTP4N65X2 is an N-Channel MOSFET with a maximum drain-source voltage of 650V and a continuous drain current of 4A at 25°C. It offers a low on-resistance of 850mOhm at 2A drain current and 10V gate drive voltage. The gate threshold voltage is 5V at 250µA, and the maximum gate-source voltage is ±30V.
This MOSFET operates within a temperature range of -55°C to 150°C (TJ). It utilizes MOSFET (Metal Oxide) technology and is housed in a TO-220-3 package, suitable for through-hole mounting. The maximum power dissipation is rated at 80W (Tc).
Key electrical characteristics include an input capacitance of 455pF at 25V and a gate charge of 8.3nC at 10V. The IXTP4N65X2 is designed for various power switching applications where high voltage and moderate current handling are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-to-source voltage (Vdss) is 650 V.
The continuous drain current (Id) is 4A (Tc).
The maximum on-resistance (Rds On) is 850mOhm at 2A drain current and 10V gate voltage.
The operating temperature range is -55°C to 150°C (TJ).
The IXTP4N65X2 is available in a TO-220-3 package.
The IXTP4N65X2 is designed for through-hole mounting.
