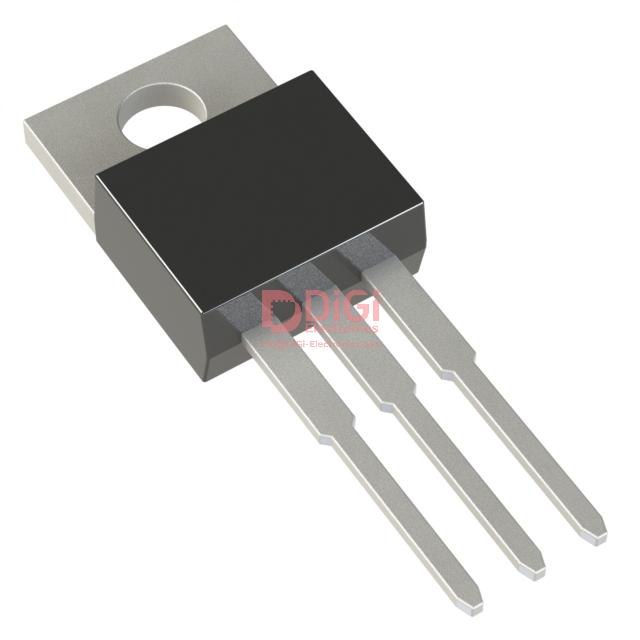

The IXYS IXTP02N120P is an N-Channel Power MOSFET with a 1200V drain-to-source voltage (Vdss) and a continuous drain current (Id) of 200mA at 25°C. It offers a low on-resistance of 75 Ohms maximum at 100mA and 10V gate-source voltage, with a gate threshold voltage (Vgs(th)) of 4V maximum at 100µA.
This MOSFET is avalanche rated and features fast intrinsic rectification, making it suitable for demanding applications. It operates within a temperature range of -55°C to 150°C (TJ) and has a maximum power dissipation of 33W at 25°C.
The device is housed in a standard TO-220-3 package and is designed for through-hole mounting. Its key electrical characteristics include a maximum gate-source voltage of ±20V and an input capacitance (Ciss) of 104pF at 25V.
Applications for the IXTP02N120P include DC-DC converters, switch-mode power supplies, and motor control systems where high voltage blocking and efficient switching are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-to-source voltage (Vdss) is 1200V.
The continuous drain current is 200mA at 25°C.
The maximum on-resistance is 75 Ohms at 100mA and 10V gate-source voltage.
The maximum gate threshold voltage is 4V at 100µA.
The operating temperature range is -55°C to 150°C (TJ).
The IXTP02N120P is available in a TO-220-3 package.
