| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,238 pcs
|
3238 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
180 pcs
|
180 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Channel Type | |
| Current | |
| Driven Configuration | |
| Gate Type | |
| Input Type | |
| Logic Voltage | |
| Mounting Type | |
| Number of Drivers | |
| Operating Temperature | |
| Rise | |
| Voltage |
The IXRFD630 is a single-channel, non-inverting, low-side gate driver IC manufactured by IXYS. It is designed to drive N-channel and P-channel MOSFETs, offering a peak output current of 30A in both source and sink configurations. The device operates with a supply voltage ranging from 8V to 18V and features logic voltage thresholds of 0.8V for VIH and 3.5V for VIL.

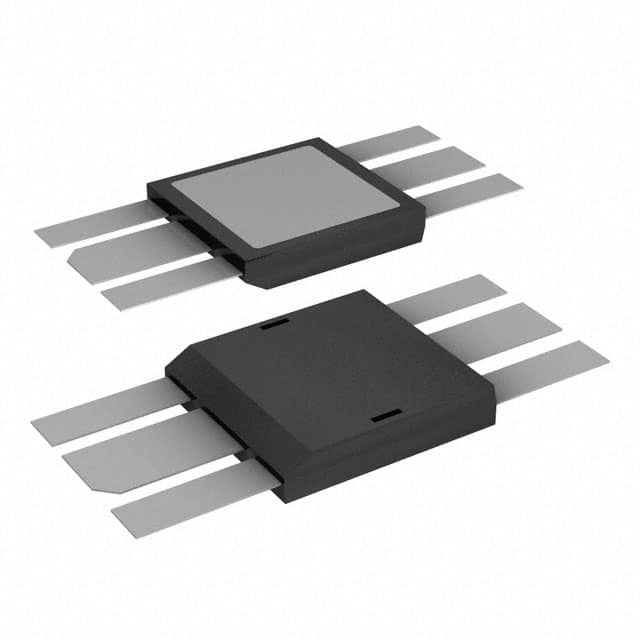

With a typical rise and fall time of 4ns, the IXRFD630 is suitable for high-speed switching applications. It is specified for operation across a wide temperature range of -40°C to 150°C (TJ). The gate driver is housed in a 6-SMD, Flat Lead Exposed Pad package, designed for surface mounting.
This component is categorized under Power Management (PMIC) and specifically within Gate Drivers. Its robust specifications make it a reliable choice for various power control circuits requiring efficient gate drive capabilities.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.01 | $2.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range for the IXRFD630 is 8V to 18V.
The IXRFD630 has a peak output current of 30A.
The typical rise and fall times for the IXRFD630 are 4ns.
The operating temperature range for the IXRFD630 is -40°C to 150°C (TJ).
The IXRFD630 is in a 6-SMD, Flat Lead Exposed Pad package.
The RoHS status of the IXRFD630 is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the IXRFD630 is 1 Unlimited.
