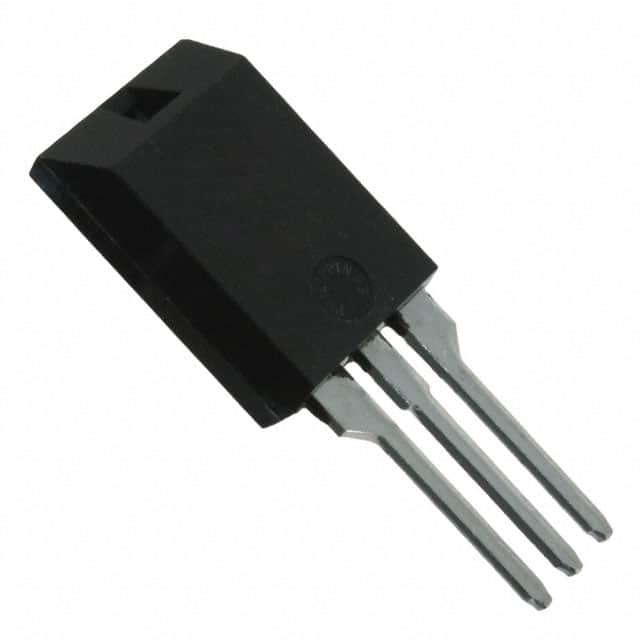

IXKC23N60C5 The IXYS IXKC23N60C5 is an N-Channel MOSFET with a 600V drain-source voltage and 23A continuous current rating. It is housed in an ISOPLUS220™ package and designed for through-hole mounting.
Mfr Part #:

IXKC23N60C5

Available from 1 distributors
Mfr Name: IXYS
IXYS
The IXYS IXKC23N60C5 is an N-Channel MOSFET with a 600V drain-source voltage and 23A continuous current rating. It is housed in an ISOPLUS220™ package and designed for through-hole mounting.
✓ Total Stock: 7 pcs
$ Price Range: $0.99

IXKC23N60C5 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ACK ELEKTRONIK ✓
Non-Authorised Inventory information
7 pcs
On Request
7 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IXKC23N60C5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Industrial Grade
Input Capacitance (Ciss) (Max) @ Vds
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Rds On (Max) @ Id, Vgs
Supplier Device Package
Tape & Reel
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

IXKC23N60C5 Description

Short technical summary and product information.

This IXYS IXKC23N60C5 is a single N-Channel MOSFET designed for power switching applications. It offers a high drain-source voltage rating of 600V and a continuous drain current capability of 23A at a specific case temperature.



The MOSFET features a low on-resistance of 100mOhm maximum at 18A and 10V Vgs, with a gate threshold voltage of 3.9V at 1.2mA. Input capacitance is rated at 2800pF at 100V, and gate charge is 80nC at 10V.



Designed for through-hole mounting, the component utilizes the ISOPLUS220™ package. It operates within a temperature range of -55°C to 150°C (TJ). The device is specified with a maximum gate-source voltage of ±20V.



Environmental compliance includes RoHS3 compliance, MSL 1, and REACH unaffected status. This MOSFET is suitable for various power electronics designs requiring robust performance and high voltage handling.

IXKC23N60C5 Quick Information

Product Type: MOSFET
Canonical Name: IXKC23N60C5 N-Channel 600V 23A MOSFET
Subcategory: Single

IXKC23N60C5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IXKC23N60C5 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

IXKC23N60C5 Features

  • 600V drain-source voltage rating.
  • 23A continuous drain current.
  • Low Rds On: 100mOhm max.
  • ISOPLUS220™ package.
  • Through-hole mounting type.

IXKC23N60C5 Applications

  • Power supply circuits.
  • Motor control applications.
  • Industrial power systems.
  • Switching power supplies.

IXKC23N60C5 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum drain-source voltage for the IXKC23N60C5?

The maximum drain-source voltage (Vdss) is 600 V.

What is the continuous drain current rating?

The continuous drain current is 23A (Tc).

What is the maximum on-resistance (Rds On)?

The maximum Rds On is 100mOhm at 18A drain current and 10V gate-source voltage.

What is the operating temperature range?

The operating temperature range is -55°C to 150°C (TJ).

What package type is the IXKC23N60C5 supplied in?

The component is supplied in the ISOPLUS220™ package.

How is the IXKC23N60C5 mounted?

It is designed for through-hole mounting.
