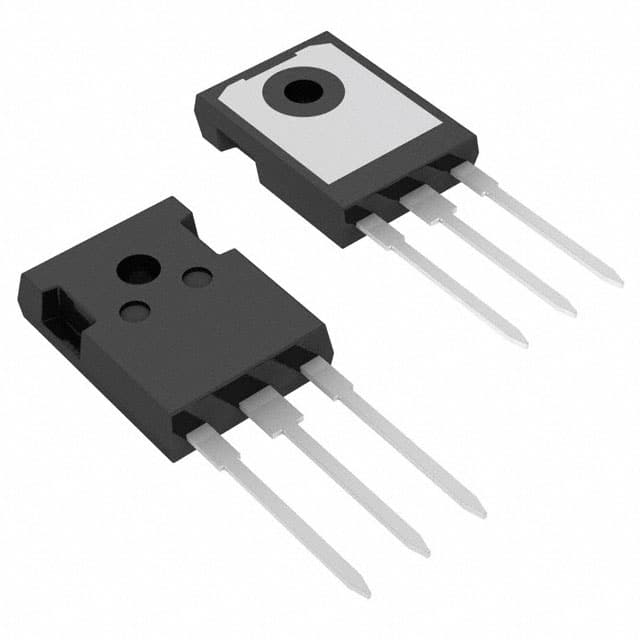

The IXYS IXGH48N60C3D1 is a high-performance Insulated Gate Bipolar Transistor (IGBT) designed for power switching applications. It features a robust 600V voltage rating and a continuous current capability of 75A, with a power dissipation of 300W.
This IGBT is designed for operation within a temperature range of -55°C to 150°C. Key electrical characteristics include a typical saturation voltage of 2.5V at 15V and 30A, and a typical gate charge of 77 nC. Switching performance is detailed with a turn-on delay of 19ns and a reverse recovery time of 25ns, along with switching energy values for both turn-on and turn-off.
The component is packaged in a TO-247-3 configuration, suitable for through-hole mounting. Its standard input type and PT IGBT designation make it a versatile component for various industrial and power electronics designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The IXGH48N60C3D1 has a voltage rating of 600 V.
The continuous current rating for the IXGH48N60C3D1 is 75 A.
The operating temperature range for the IXGH48N60C3D1 is -55°C to 150°C.
The IXGH48N60C3D1 is supplied in a TO-247-3 package.
The IXGH48N60C3D1 is designed for through-hole mounting.
