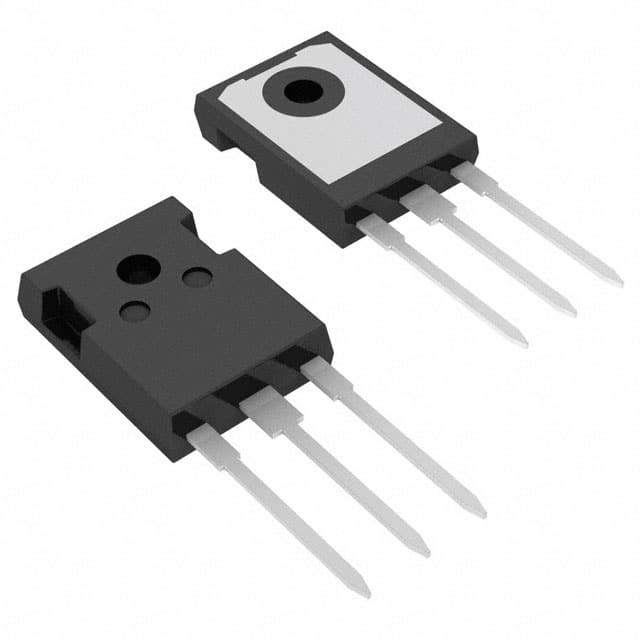

The IXGH48N60C3C1 is a Punch Through (PT) IGBT from IXYS, part of the GenX3 series. It is rated for a collector-emitter breakdown voltage of 600V and a continuous collector current of 75A, with a pulsed current capability of 250A. The device exhibits a low collector-emitter saturation voltage of 2.5V maximum at Vge=15V and Ic=30A, contributing to reduced conduction losses. Maximum power dissipation is 300W. Switching characteristics include a turn-on switching energy of 330J and turn-off energy of 230J, with turn-on delay time of 19ns and turn-off delay time of 60ns at 25°C. Gate charge is 77nC. The IGBT is housed in a TO-247-3 package (supplier device package TO-247AD) and is designed for through-hole mounting. It operates over a junction temperature range of -55°C to 150°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.16 | $4.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The collector-emitter breakdown voltage is 600V.
It comes in a TO-247-3 package (supplier device package TO-247AD).
The operating junction temperature range is -55°C to 150°C.
The continuous collector current is 75A, and pulsed current is 250A.
The maximum Vce(on) is 2.5V at Vge=15V and Ic=30A.
The gate charge is 77 nC.
It is part of the GenX3 series.
