| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,780 pcs
|
3780 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The IXFX32N50 is a high-voltage N-Channel MOSFET from IXYS, designed for demanding power switching and amplification applications. It features a drain-source voltage rating of 500V and a continuous drain current of 32A (at Tc). The device offers a maximum on-resistance of 150 mOhm at 15A drain current and 10V gate drive, ensuring efficient conduction with low power losses.
With a gate charge of 300 nC at 10V and an input capacitance of 5450 pF at 25V, the IXFX32N50 is optimized for moderate switching speeds, suitable for applications such as switch-mode power supplies, motor drives, and inverters. The maximum power dissipation is 360W at case temperature, and it operates over a junction temperature range of -55°C to 150°C.

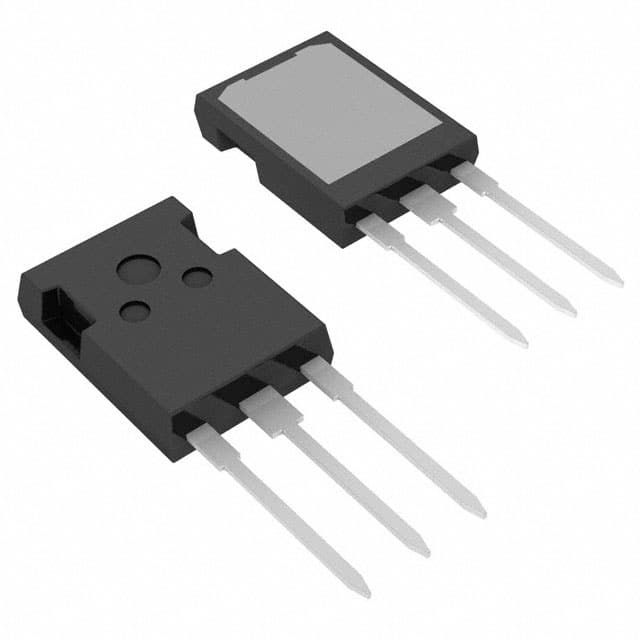

The MOSFET is housed in a through-hole PLUS247-3 package, which is a variant of the TO-247-3 standard. The supplier device package is designated as PLUS247™-3, providing robust thermal performance and easy mounting on heatsinks. The device is RoHS3 compliant (unverified) and has an MSL of 1 (unlimited). It is recommended for use in circuits requiring high voltage and current handling with low Rds(on).
The maximum drain-source voltage (Vdss) is 500V.
The continuous drain current (Id) is 32A at Tc.
The maximum on-resistance (Rds on) is 150 mOhm at Id=15A and Vgs=10V.
The operating junction temperature range is -55°C to 150°C.
It is available in a through-hole TO-247-3 variant, specifically the PLUS247™-3 package.
It is listed as RoHS3 compliant, but this is unverified. Confirm with the manufacturer.
The maximum gate charge (Qg) is 300 nC at Vgs=10V.
