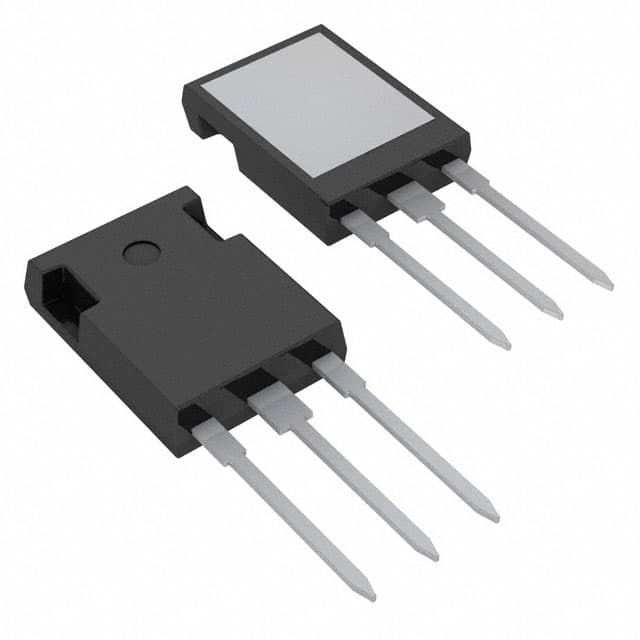

IXFR55N50 The IXFR55N50 is an N-Channel Power MOSFET from IXYS, rated at 500V drain-source voltage and 48A continuous drain current, housed in a through-hole ISOPLUS247 package.
Mfr Part #:

IXFR55N50

Available from 1 distributors
Mfr Name: IXYS
IXYS
The IXFR55N50 is an N-Channel Power MOSFET from IXYS, rated at 500V drain-source voltage and 48A continuous drain current, housed in a through-hole ISOPLUS247 package.
✓ Total Stock: 50 pcs
$ Price Range: $20.96 - $25.60

IXFR55N50 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Spartce Electronics. ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IXFR55N50 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Supplier Device Package
Tape & Reel
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

IXFR55N50 Description

Short technical summary and product information.

The IXFR55N50 is an N-Channel enhancement-mode power MOSFET manufactured by IXYS, designed for high-voltage, high-current switching applications. It features a drain-to-source voltage (Vdss) of 500V and a continuous drain current (Id) of 48A at case temperature (Tc). The device utilizes MOSFET (Metal Oxide) technology and offers a maximum drain-to-source on-resistance (Rds(on)) of 90 mOhm at Id = 27.5A and Vgs = 10V, ensuring efficient power conversion.



Key electrical characteristics include a maximum gate threshold voltage (Vgs(th)) of 4.5V at Id = 8mA, a maximum gate charge (Qg) of 330 nC at Vgs = 10V, and an input capacitance (Ciss) of 9400 pF at Vds = 25V. The device can dissipate up to 400W of power (at Tc) and operates over a junction temperature range of -40°C to 150°C.



The IXFR55N50 is packaged in a through-hole TO-247-3 (ISOPLUS247) case, suitable for direct mounting on heatsinks in power supply, motor control, and inverter circuits. Its high voltage rating and low on-resistance make it well-suited for demanding power management tasks.

IXFR55N50 Quick Information

Product Type: MOSFET
Canonical Name: IXFR55N50 N-Channel Power MOSFET
Subcategory: Single MOSFETs

IXFR55N50 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IXFR55N50 Estimated Pricing

Qty Low High
30+ $25.60 $25.60
120+ $22.13 $22.13
510+ $20.96 $20.96

Estimated market price range - modelled values for guidance only, not live distributor offers.

IXFR55N50 Features

  • N-Channel, 500V drain-to-source voltage.
  • 48A continuous drain current rating.
  • Low on-resistance of 90 mOhm.
  • Through-hole ISOPLUS247 package.
  • Operating temperature range -40°C to 150°C.

IXFR55N50 Applications

  • High-voltage DC-DC converter circuits.
  • Motor drive and inverter systems.
  • Switch-mode power supply designs.
  • Power factor correction (PFC) stages.

IXFR55N50 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum drain-to-source voltage of the IXFR55N50?

The maximum drain-to-source voltage is 500V.

What is the continuous drain current rating?

The continuous drain current is 48A at case temperature (Tc).

What is the typical on-resistance (Rds(on))?

Maximum Rds(on) is 90 mOhm at Id = 27.5A and Vgs = 10V.

What package does the IXFR55N50 come in?

It comes in a through-hole TO-247-3 package, also known as ISOPLUS247.

What is the operating temperature range?

The operating junction temperature range is -40°C to 150°C.

Is the IXFR55N50 RoHS compliant?

It is listed as RoHS3 Compliant, but this has not been independently verified.
