| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,090 pcs
|
1090 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The IXFK360N10T is an N-Channel power MOSFET from IXYS designed for high-current switching applications. It offers a drain-source voltage rating of 100V and a continuous drain current of 360A at case temperature. With a maximum on-resistance of 2.9mOhm at 10V gate drive, this device provides efficient power conversion with minimal conduction losses.
Key electrical characteristics include a gate charge of 525nC and input capacitance of 33000pF, which influence switching performance in high-frequency circuits. The maximum power dissipation is rated at 1250W, and the junction can operate from -55°C to 175°C, suitable for demanding thermal environments.

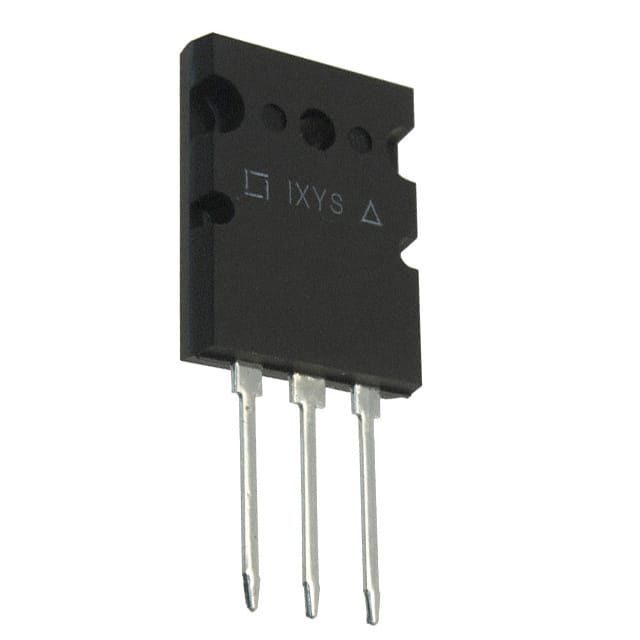

The device is housed in a TO-264-3 (TO-264AA) through-hole package, offering robust mechanical mounting and effective heat dissipation via a metal tab. It is commonly used in power supplies, motor drives, DC-DC converters, and battery management systems where high current and low resistance are critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $19.09 | $19.09 |
| 10+ | $13.45 | $13.45 |
| 100+ | $10.63 | $10.63 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage is 100V.
It is available in a TO-264-3 (TO-264AA) through-hole package.
The junction temperature range is -55°C to 175°C.
It is listed as RoHS3 compliant, but this status is unverified.
The maximum continuous drain current is 360A at case temperature.
The maximum gate charge is 525nC at 10V gate-source voltage.
The maximum drain-source on-resistance is 2.9mOhm at 100A and 10V gate drive.
