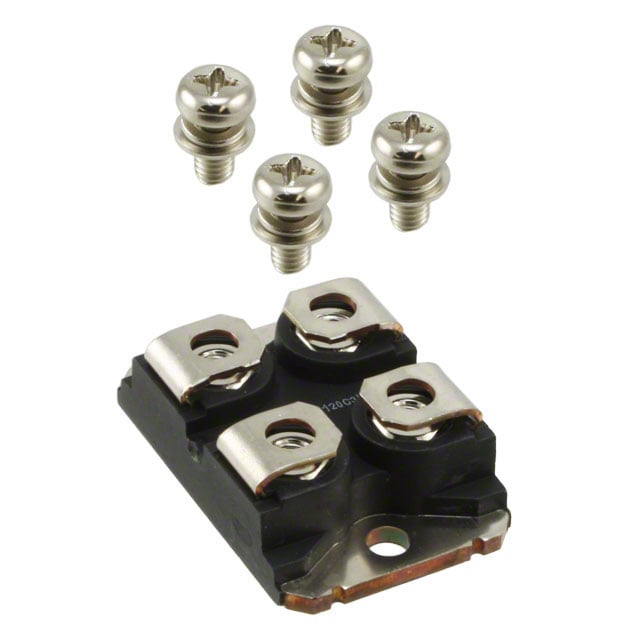

IXEN60N120 IXEN60N120 is a 1200V, 100A NPT IGBT module from IXYS in a SOT-227B miniBLOC package with isolated copper base plate.
Mfr Part #:

IXEN60N120

Available from 1 distributors
Mfr Name: IXYS
IXYS
IXEN60N120 is a 1200V, 100A NPT IGBT module from IXYS in a SOT-227B miniBLOC package with isolated copper base plate.
✓ Total Stock: 10 pcs

IXEN60N120 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IXEN60N120 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Configuration
Current
IGBT Type
Input
Input Capacitance (Cies) @ Vce
Mounting Type
NTC Thermistor
Operating Temperature
Package / Case
Power
Supplier Device Package
Tape & Reel
Vce(on) (Max) @ Vge, Ic
Voltage
View Similar Products (0)

IXEN60N120 Description

Short technical summary and product information.

The IXEN60N120 is a single NPT3 IGBT module from IXYS designed for high power switching applications. It is rated for a maximum collector-emitter voltage of 1200V and can handle a DC collector current of 100A at 25°C case temperature (65A at 90°C). The device dissipates up to 445W at 25°C and features a typical collector-emitter saturation voltage of 2.1V at 60A and 15V gate drive.



This IGBT offers fast switching with typical turn-on delay time of 80ns, rise time of 50ns, turn-off delay of 680ns, and fall time of 30ns. The typical turn-on and turn-off switching energies are 7.2mJ and 4.8mJ respectively (inductive load at 125°C, 600V, 60A). The gate threshold voltage ranges from 4.5V to 6.5V, and the total gate charge is 350nC.



The module is housed in the industry-standard SOT-227B (miniBLOC) package with an isolated copper base plate and screw terminals for chassis mounting. The package includes a Kelvin emitter terminal for simplified gate drive design. The junction-to-case thermal resistance is 0.28K/W, and the isolation voltage is 2500V.

IXEN60N120 Quick Information

Product Type: IGBT Module
Canonical Name: IXEN60N120 NPT IGBT Module, Single, 1200V, 100A, SOT-227B
Subcategory: Single IGBT Module

IXEN60N120 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IXEN60N120 Features

  • 1200V collector-emitter voltage rating.
  • 100A DC collector current capability.
  • Low typical VCE(sat) of 2.1V at 60A.
  • Fast switching with low gate charge of 350nC.
  • SOT-227B miniBLOC isolated package.

IXEN60N120 Applications

  • Use in AC and DC motor drives.
  • Suitable for UPS and power supply systems.
  • Use in induction heating equipment.
  • Applicable for chopper and H-bridge circuits.

IXEN60N120 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum collector-emitter voltage of the IXEN60N120?

The maximum collector-emitter voltage (VCES) is 1200V from TVJ = 25°C to 150°C.

What is the maximum DC collector current rating?

The maximum DC collector current is 100A at TC = 25°C and 65A at TC = 90°C.

What package does the IXEN60N120 come in?

The device is supplied in a SOT-227-4, miniBLOC package (SOT-227B) intended for chassis mounting.

What is the operating temperature range for this IGBT?

The operating junction temperature range is -40°C to 150°C.

What is the typical collector-emitter saturation voltage?

The typical VCE(sat) is 2.1V at IC = 60A, VGE = 15V, TVJ = 25°C, with a maximum of 2.7V.

Does the IXEN60N120 have an NTC thermistor?

No, the module does not include an NTC thermistor.
