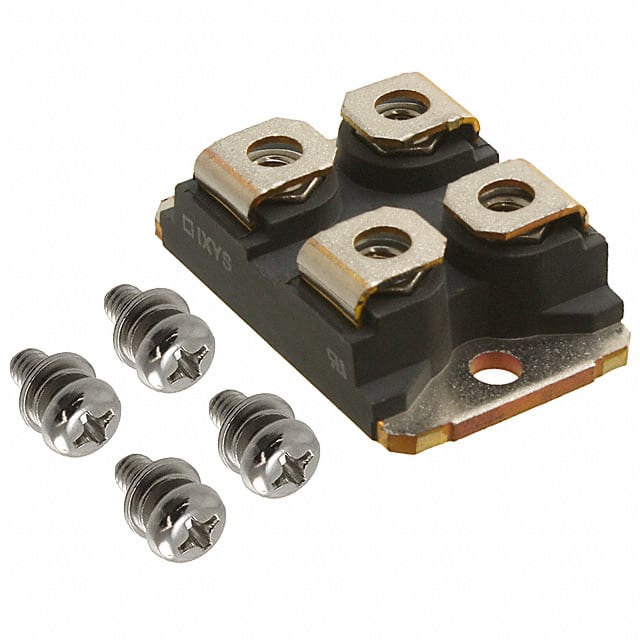

IXDN75N120 IGBT module rated for 1200V, 150A continuous collector current, and 660W power dissipation. Features NPT technology, single configuration, and chassis mount SOT-227B package.
Mfr Part #:

IXDN75N120

Available from 1 distributors
Mfr Name: IXYS
IXYS
IGBT module rated for 1200V, 150A continuous collector current, and 660W power dissipation. Features NPT technology, single configuration, and chassis mount SOT-227B package.
✓ Total Stock: 30 pcs
$ Price Range: $37.72 - $53.61

IXDN75N120 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ACK ELEKTRONIK ✓
Non-Authorised Inventory information
30 pcs
On Request
30 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IXDN75N120 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Configuration
Current
IGBT Type
Input
Input Capacitance (Cies) @ Vce
Input Type
Mounting Type
NTC Thermistor
Operating Temperature
Power
Supplier Device Package
Tape & Reel
Vce(on) (Max) @ Vge, Ic
Voltage
View Similar Products (0)

IXDN75N120 Description

Short technical summary and product information.

The IXDN75N120 is an NPT (Non-Punch Through) IGBT module from IXYS, designed for high-power switching applications. It features a 1200V collector-emitter voltage rating and a continuous collector current of 150A, with a power dissipation capability of 660W. The module is configured as a single IGBT with standard input and no NTC thermistor.



Key electrical characteristics include a maximum collector-emitter saturation voltage (Vce(on)) of 2.7V at Vge = 15V and Ic = 75A, and an input capacitance (Cies) of 5.5 nF at Vce = 25V. The operating junction temperature range is -40°C to 150°C.



The module is packaged in a SOT-227-4 miniBLOC (SOT-227B) case for chassis mounting, providing robust thermal management and high power density. This IGBT module is suitable for motor drives, power inverters, induction heating, and other industrial power electronics requiring high voltage and current handling.

IXDN75N120 Quick Information

Product Type: IGBT Module
Canonical Name: IXDN75N120 IGBT Module, 1200V, 150A, 660W, NPT, Single, Chassis Mount, SOT-227B
Subcategory: Single IGBT

IXDN75N120 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IXDN75N120 Estimated Pricing

Qty Low High
1+ $53.61 $53.61
10+ $44.56 $44.56
100+ $37.72 $37.72

Estimated market price range - modelled values for guidance only, not live distributor offers.

IXDN75N120 Features

  • 1200V collector-emitter voltage rating.
  • 150A continuous collector current.
  • 660W power dissipation capability.
  • NPT IGBT technology.
  • Chassis mount SOT-227B package.

IXDN75N120 Applications

  • Used in motor drive inverters.
  • Suitable for UPS systems.
  • Ideal for solar power inverters.

IXDN75N120 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the IXDN75N120?

-40°C to 150°C (junction temperature).

What is the collector-emitter voltage rating?

1200V.

What is the package type?

SOT-227-4, miniBLOC (also known as SOT-227B).

Is the IXDN75N120 RoHS compliant?

Listed as RoHS3 Compliant, but this is unverified.

What is the continuous collector current?

150A.

What is the power dissipation?

660W.

What is the Vce(on) saturation voltage?

2.7V at Vge=15V, Ic=75A.
