| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,468 pcs
|
1468 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Channel Type | |
| Current | |
| Driven Configuration | |
| Gate Type | |
| Input Type | |
| Logic Voltage | |
| Mounting Style | |
| Mounting Type | |
| Number of Drivers | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Rise | |
| Supplier Device Package | |
| Technology | |
| Voltage |
The IXDN630YI is a gate driver IC manufactured by IXYS, designed for efficient control of power MOSFETs and IGBTs. This component is a low-side driver, meaning it is typically used to switch the low-side of a half-bridge or full-bridge configuration.
Key electrical characteristics include a high output current capability of 30A, enabling fast switching of power devices. The device operates over a wide supply voltage range of 12.5V to 35V. It offers fast switching speeds with rise and fall times of 11ns, contributing to reduced switching losses in power applications.

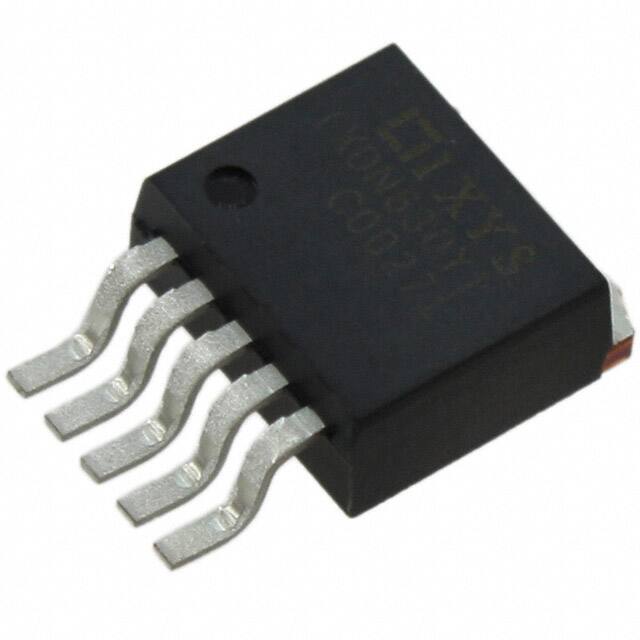

The IXDN630YI is housed in a TO-263-5 surface-mount package, suitable for automated assembly processes. The operating temperature range is -55°C to 150°C, ensuring reliability in demanding environments. This gate driver is part of the Ixd_630 series.
This component is suitable for various power management applications where efficient and rapid switching of power transistors is critical. Its robust specifications make it a viable option for designs requiring high current gate drive capabilities.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.01 | $2.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The IXDN630YI operates from 12.5 V to 35 V.
The IXDN630YI is available in a TO-263-5 surface mount package.
The IXDN630YI operates from -40°C to 150°C junction temperature.
The IXDN630YI can deliver up to 30 A peak output current.
The IXDN630YI has rise and fall times of 11 ns each.
The IXDN630YI is a single-channel gate driver.
The quiescent supply current is typically 10 µA.
