| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
96 pcs
|
96 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Channel Type | |
| Current | |
| Driven Configuration | |
| Gate Type | |
| Input Type | |
| Logic Voltage | |
| Mounting Type | |
| Number of Drivers | |
| Operating Temperature | |
| Rise | |
| SVHC Present | |
| Supplier Device Package | |
| Voltage | |
| Voltage Supply |
The IXDN409YI is a single-channel, low-side gate driver manufactured by IXYS. It is designed to drive IGBT, N-Channel, and P-Channel MOSFETs.
This gate driver operates with a supply voltage ranging from 4.5V to 35V. It provides a peak output current of 9A for both source and sink operations. The device features a non-inverting input type and typical rise and fall times of 10ns. Logic voltage levels for VIL and VIH are 0.8V and 3.5V, respectively.

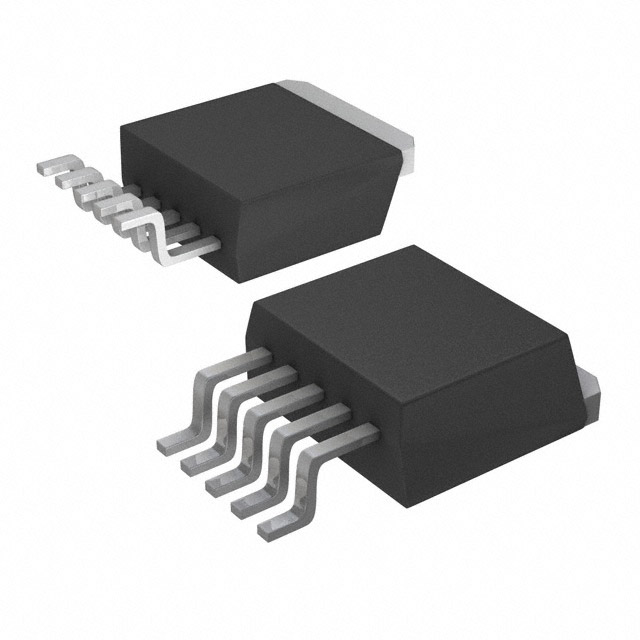

The IXDN409YI is housed in a TO-263-5 package, suitable for surface mount applications. It operates within an industrial temperature range of -55°C to 150°C (TJ). The component is RoHS3 compliant and has an MSL rating of 1.
This gate driver is suitable for various power management applications requiring efficient switching of power transistors.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.01 | $2.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4.5V to 35V.
The device is available in TO-263-6 (D2Pak) with 5 leads plus tab, and the supplier device package is TO-263-5. Mounting type is surface mount.
-55°C to 150°C junction temperature.
9A source and 9A sink.
10ns each.
One.
Low-side.
