| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,349 pcs
|
4349 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Channel Type | |
| Current | |
| Driven Configuration | |
| Gate Type | |
| Industrial Grade | |
| Input Type | |
| Lead Style | |
| Logic Voltage | |
| Medical Grade | |
| Military Grade | |
| Mounting Style | |
| Mounting Type | |
| Number of Drivers | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Rise | |
| SVHC Present | |
| Supplier Device Package | |
| Technology | |
| Voltage |
The IXDD630YI is a single-channel, low-side gate driver manufactured by IXYS. This component is designed to drive IGBTs and N-Channel/P-Channel MOSFETs, offering a robust solution for power management applications.
Key electrical specifications include a high output current capability of 30A and a wide supply voltage range from 12.5V to 35V. It boasts fast switching characteristics with a rise time and fall time of 11ns each, and maximum turn-on/turn-off delay times of 100ns. The device operates with a low supply current of 10µA.

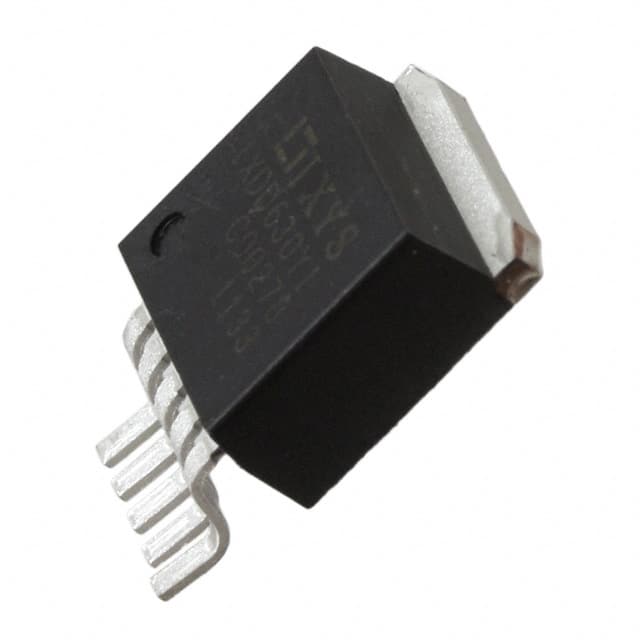

Packaged in a surface-mount TO-263-5 (or TO-263BA) configuration, the IXDD630YI is suitable for automated assembly processes. Its operating temperature range spans from -40°C to +125°C, ensuring reliable performance in various environmental conditions. The component is constructed using Silicon (Si) technology.
This gate driver is part of the Ixd_630 series and is classified under PMIC - Power Management ICs. It is supplied in a tube package with a standard pack quantity of 50 units.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.01 | $2.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The IXDD630YI has a peak output current of 30 A.
The supply voltage range is 12.5 V to 35 V.
The IXDD630YI is available in a TO-263-5 surface-mount package.
The operating temperature range is -40 °C to +125 °C.
The IXDD630YI can drive IGBTs, N-channel MOSFETs, and P-channel MOSFETs.
