Mfr Part #:

IXDD509D1

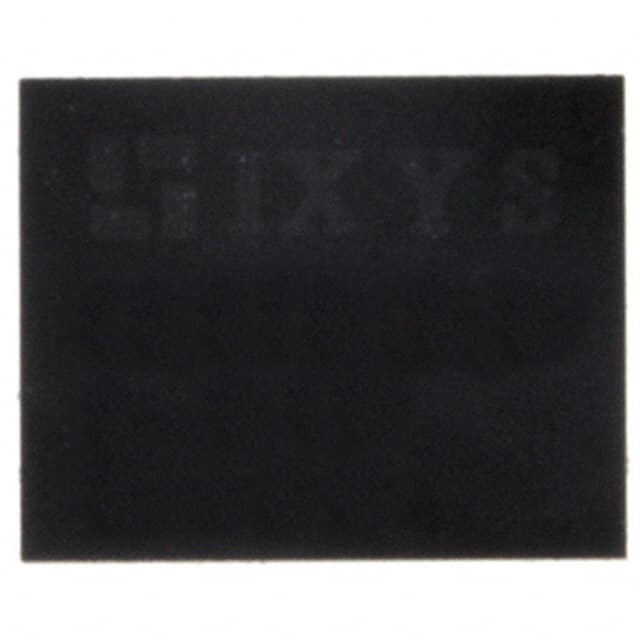

Name: IXDD509D1
Brand: IXYS
SKU: IXDD509D1

Mfr Name: IXYS

Description:

IC GATE DRVR LOW-SIDE 6DFN

Stock on Request

IXDD509D1 Description

Short technical summary and product information.

IC GATE DRVR LOW-SIDE 6DFN

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

IXDN509D1

IXYS

IC GATE DRVR LOW-SIDE 6DFN

IXDD509D1T/R

IXYS

IC GATE DRVR LOW-SIDE 6DFN

IXDN509D1T/R

IXYS

IC GATE DRVR LOW-SIDE 6DFN

Category	Gate Drivers
Manufacturer Name	IXYS
Channel Type	Single
Current	9A, 9A
Driven Configuration	Low-Side
Gate Type	IGBT, N-Channel, P-Channel MOSFET
Input Type	Non-Inverting
Logic Voltage	0.8V, 2.4V
Mounting Type	Surface Mount
Number of Drivers	1
Operating Temperature	-55°C ~ 150°C (TJ)
Rise	25ns, 23ns
Supplier Device Package	6-DFN (4x5)
Voltage	4.5V ~ 30V
