| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,250 pcs
|
3250 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ADC Sampling Rate | |
| Approval Agency | |
| CPU | |
| CPU Frequency | |
| DSP Frequency | |
| DSP Type | |
| Edge AI Enabled | |
| Frequency | |
| Interface | |
| Lead Spacing | |
| Mounting Type | |
| Number of Receivers | |
| Number of Transmitters | |
| Operating Temperature Range | |
| Phase Noise (Typical @ 1 MHz, 76 to 77 GHz) | |
| Phase Noise (Typical @ 1 MHz, 77 to 81 GHz) | |
| RAM | |
| RF Type | |
| Rx Noise Figure (Typical @ 76 to 77 GHz) | |
| Rx Noise Figure (Typical @ 77 to 81 GHz) | |
| Supplier Device Package | |
| Supplier Package | |
| TX power | |
| Voltage |
The IWR1642AQAGABL from Texas Instruments is a single-chip mmWave sensor designed for radar applications. It operates within the 76 GHz to 81 GHz frequency range, offering a continuous bandwidth of 4 GHz. This device integrates a Digital Signal Processor (DSP) and a microcontroller, specifically a C67x DSP at 600 MHz and an Arm Cortex-R4F CPU at 200 MHz, enabling complex radar signal processing, object tracking, and classification.
Key electrical specifications include 4 receive channels and 2 transmit channels, with a TX power of 12.5 dBm. The ADC sampling rate is 12500 ksps. The device supports a wide operating temperature range of -40°C to 105°C. It features various interfaces including CAN, I2C, LVDS, QSPI, SPI, and UART, and has 1536 kByte of RAM.

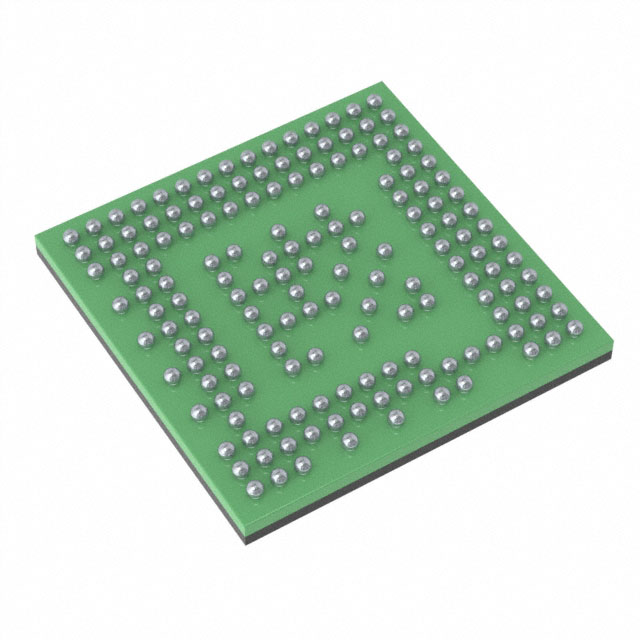

This RF detector is housed in a 161-TFBGA, FCCSP package and is designed for surface mount applications. The supplier package is specified as 161-FC/CSP with dimensions of 10.4 mm x 10.4 mm. The device supports dual voltage supplies of 1.71V to 1.89V and 3.15V to 3.45V.
| Qty | Low | High |
|---|---|---|
| 1+ | $17.38 | $17.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 1.71V to 1.89V and 3.15V to 3.45V.
It is supplied in a 161-TFBGA, FCCSP package.
The operating temperature range is -40°C to 105°C.
The frequency range is 76 GHz to 81 GHz.
It has 4 receivers and 2 transmitters.
The TX power is 12.5 dBm.
Yes, the IWR1642AQAGABL is Edge AI enabled.
