| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Case Temperature | |
| Cooling Method | |
| Current | |
| Efficiency | |
| Height | |
| Input Filter | |
| Input Voltage (Nominal) | |
| Input Voltage Range | |
| Isolation Capacitance | |
| Isolation Resistance | |
| Isolation Voltage | |
| Lead Spacing | |
| Length | |
| Line Regulation | |
| Load Regulation | |
| MTBF | |
| Maximum Capacitive Load (Dual Output) | |
| Minimum Load | |
| Mounting Type | |
| No Load Input Current | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Ripple & Noise | |
| SVHC Present | |
| Safety Approvals | |
| Setpoint Accuracy | |
| Standard Number | |
| Storage Temperature | |
| Switching Frequency | |
| Tape & Reel | |
| Temperature Coefficient | |
| Termination Style | |
| Type | |
| Voltage | |
| Weight | |
| Width |

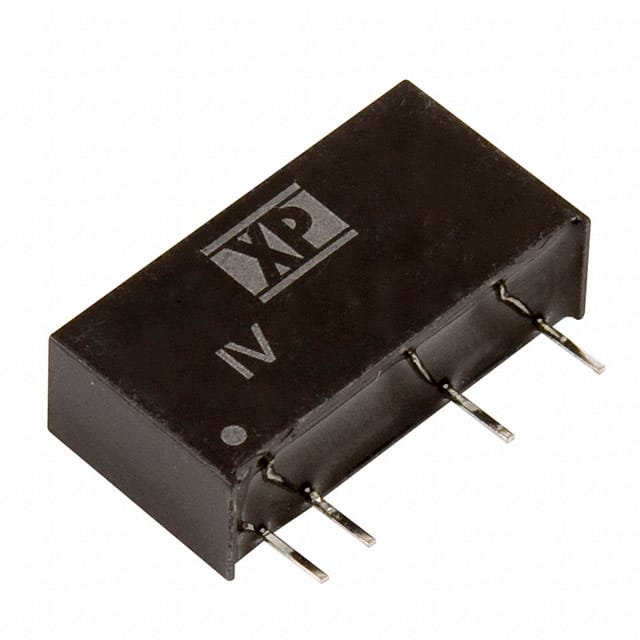

The XP Power IV2412S is a 1-watt isolated DC DC converter from the IV Series, designed to deliver a regulated dual output of ±12 VDC from a nominal 24 VDC input (21.6-26.4 VDC range). It provides 42 mA per channel with a typical efficiency of 78%.
This converter offers 3000 VDC input-to-output isolation, making it suitable for applications requiring galvanic isolation. Key electrical characteristics include a setpoint accuracy of ±3%, ripple and noise of 75 mV pk-pk maximum (20 MHz bandwidth), and a switching frequency of 80 kHz typical. The device is convection-cooled and operates over a temperature range of -40°C to +85°C.
The IV2412S is packaged in a compact 7-SIP module with 5 leads, measuring 19.3 mm x 6.0 mm x 10.0 mm, and is designed for through-hole mounting. It carries safety approvals including UL60950-1, CSA, UL62368-1, CE, and UKCA.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.79 | $6.79 |
| 5+ | $6.59 | $6.59 |
| 10+ | $6.38 | $6.38 |
| 20+ | $6.11 | $6.11 |
| 100+ | $5.70 | $5.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The IV2412S provides a dual output of ±12 VDC.
The nominal input voltage is 24 VDC, with a range of 21.6 VDC to 26.4 VDC (±10%).
The operating temperature range is -40°C to +85°C.
It is housed in a 7-SIP Module with 5 leads for through-hole mounting.
The isolation voltage is 3000 VDC minimum.
It carries UL60950-1, CSA, UL62368-1, CE, and UKCA approvals.
The typical efficiency is 78%.
