| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | 734 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

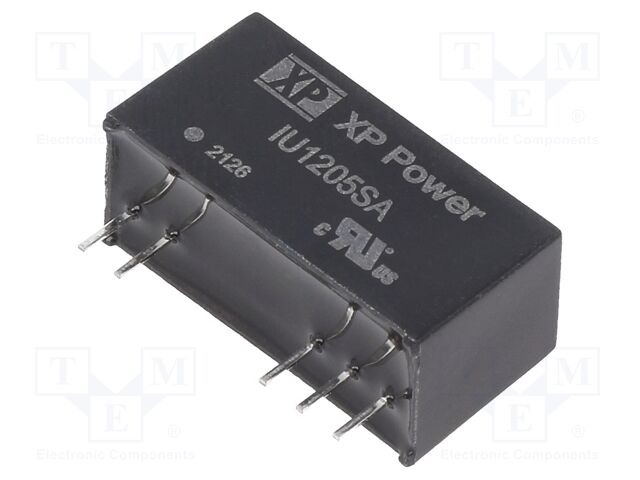

The XP Power IU1205SA is a regulated single-output DC-DC converter from the IU series. It accepts a wide 2:1 input voltage range of 9.0 to 18.0 V and delivers a nominal 5 V output at 400 mA, providing 2 W of output power with a typical efficiency of 77%.
Key electrical characteristics include line regulation of ±0.5%, load regulation of ±1% (25-100% load change), setpoint accuracy of ±2%, and ripple and noise of 80 mV pk-pk (20 MHz bandwidth). The converter features 1000 VDC input-to-output isolation (optional 3000 VDC) with isolation resistance of 10⁹ Ω and isolation capacitance of 60 pF. Switching frequency ranges from 100 to 650 kHz. Protection includes continuous short circuit protection with foldback auto recovery.
The IU1205SA is housed in an 8-SIP module with 5 leads and through-hole mounting. Dimensions are 21.9 mm x 9.2 mm x 11.1 mm. It operates over -40°C to +85°C ambient temperature with convection cooling, and can be stored from -40°C to +125°C. The case temperature limit is +100°C. The converter is designed for commercial ITE applications and carries safety approvals UL62368-1, CE, and UKCA.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.51 | $11.51 |
| 5+ | $11.16 | $11.16 |
| 10+ | $10.82 | $10.82 |
| 20+ | $10.36 | $10.36 |
| 100+ | $9.88 | $9.88 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
9.0 to 18.0 V DC.
5 V.
77%.
1000 VDC (optional 3000 VDC).
8-SIP Module, 5 Leads, through-hole.
-40°C to +85°C.
RoHS3 Compliant (unverified).
