| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Lead Spacing | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Termination Style | |
| Type | |
| Voltage | |
| Width |

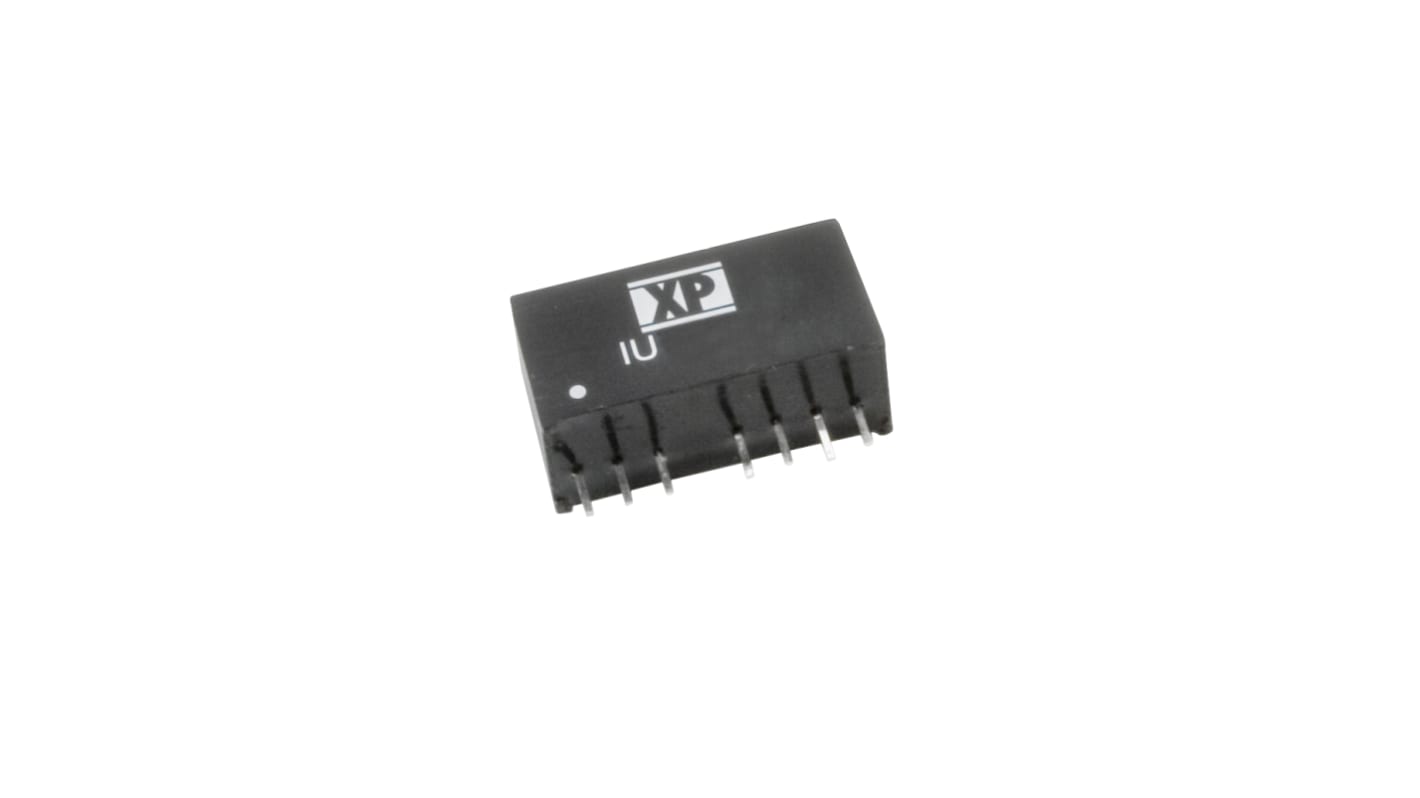

The XP Power IU0509SA is a regulated single output isolated DC-DC converter from the IU series. It delivers a nominal 9V output at up to 222mA with 2W of output power. The converter accepts a wide 4.5V to 9V input range and provides 1000VDC input-to-output isolation (optional 3000VDC).
Key electrical specifications include a typical efficiency of 72%, line regulation of ±0.5%, load regulation of ±1%, and a setpoint accuracy of ±2%. The device features continuous short circuit protection with auto recovery (foldback) and requires no minimum load for operation. Ripple and noise are limited to 80mV pk-pk maximum.
The IU0509SA is housed in an 8-SIP module with 5 leads and through-hole mounting. It measures 21.9mm x 9.2mm x 11.1mm and is convection cooled. The operating temperature range is -40°C to +85°C. Safety approvals include UL62368-1, CE, and UKCA, making it suitable for commercial ITE applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.51 | $11.51 |
| 5+ | $11.16 | $11.16 |
| 10+ | $10.82 | $10.82 |
| 20+ | $10.36 | $10.36 |
| 100+ | $9.88 | $9.88 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The IU0509SA provides a nominal 9V output at a maximum current of 222mA.
The input voltage range is 4.5V to 9V.
The isolation voltage is 1000VDC, with an optional 3000VDC available.
The operating temperature range is -40°C to +85°C.
It comes in an 8-SIP module with 5 leads, through-hole mounting.
Yes, it features continuous short circuit protection with auto recovery (foldback).
It has UL62368-1, CE, and UKCA safety approvals.
