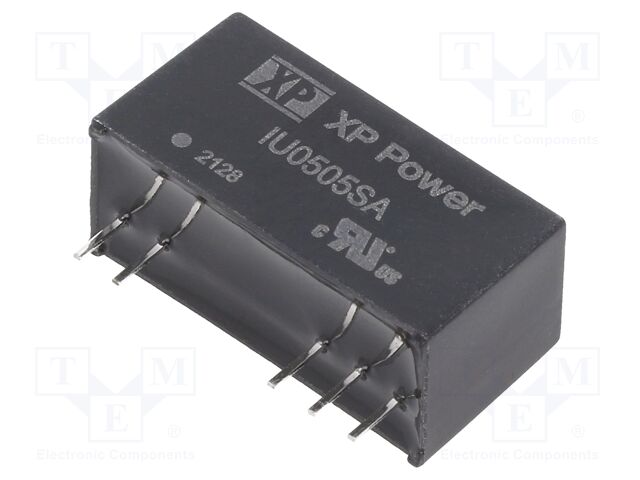

IU0505SA The XP Power IU0505SA is a 2W isolated DC-DC converter with a single 5V output at 400mA. It features a 4.5-9V input range and 1000VDC isolation in an 8-SIP through-hole package.
Mfr Part #:

IU0505SA

Available from 2 distributors
Mfr Name: XP Power
XP Power
The XP Power IU0505SA is a 2W isolated DC-DC converter with a single 5V output at 400mA. It features a 4.5-9V input range and 1000VDC isolation in an 8-SIP through-hole package.
✓ Total Stock: 504 pcs
$ Price Range: $9.88 - $11.51

IU0505SA Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
490 pcs
On Request
490 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
14 pcs
On Request
14 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IU0505SA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Output Voltage
Power (Watts)
Standard Number
Tape & Reel
Temperature Coefficient
Type
Voltage
Width
View Similar Products (0)

IU0505SA Description

Short technical summary and product information.

The XP Power IU0505SA is a 2W isolated DC-DC converter module part of the IU series. It provides a regulated single 5V output at 400mA from a 4.5V to 9V input. The converter is designed for through-hole mounting in an 8-SIP package with 5 leads, measuring 21.9mm x 9.2mm x 11.1mm.



Key electrical characteristics include 70% typical efficiency, line regulation of ±0.5%, and load regulation of ±1%. Ripple and noise are limited to 80mV pk-pk at 20MHz bandwidth. The module offers 1000VDC isolation (3000VDC optional) and continuous short circuit protection with auto recovery. The switching frequency ranges from 100 to 650kHz. Maximum capacitive load is 3300μF.



The IU0505SA operates over a -40°C to +85°C temperature range with convection cooling. It is suitable for ITE (commercial) applications and complies with UL62368-1 safety standards. The module is RoHS compliant (unverified) and has a moisture sensitivity level of 1.

IU0505SA Quick Information

Product Type: DC-DC Converter
Series: IU
Canonical Name: XP Power IU0505SA Isolated DC-DC Converter
Subcategory: Single Output, 2W

IU0505SA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IU0505SA Estimated Pricing

Qty Low High
1+ $11.51 $11.51
5+ $11.16 $11.16
10+ $10.82 $10.82
20+ $10.36 $10.36
100+ $9.88 $9.88

Estimated market price range - modelled values for guidance only, not live distributor offers.

IU0505SA Features

  • 2W isolated DC-DC converter module.
  • Single 5V output at 400mA.
  • 4.5-9V input voltage range.
  • 1000VDC isolation voltage.
  • Continuous short circuit protection.

IU0505SA Applications

  • Suitable for ITE (commercial) equipment.
  • Ideal for board-level power isolation.
  • Used in distributed power architectures.

IU0505SA FAQs

6 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the IU0505SA?

The input voltage range is 4.5V to 9.0V.

What is the output current of the IU0505SA?

400mA.

What is the isolation voltage of the IU0505SA?

1000VDC (3000VDC optional).

What is the package type of the IU0505SA?

8-SIP Module, 5 Leads, through-hole.

What is the operating temperature range of the IU0505SA?

-40°C to +85°C.

Is the IU0505SA RoHS compliant?

RoHS status is reported as compliant but unverified.
