| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Standard Number | |
| Supplier Device Package | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage | |
| Width |

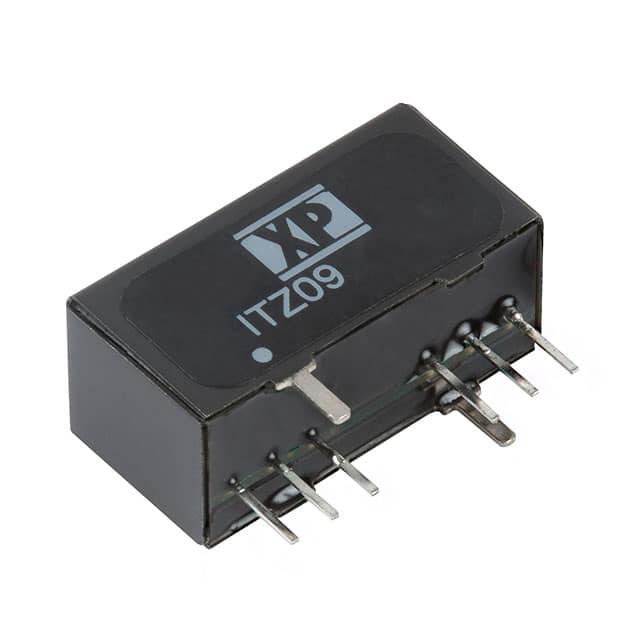

The XP Power ITZ0948D15 is a 9W isolated DC-DC converter from the ITZ series. It provides dual ±15V outputs, each rated at 200mA, from a wide 4:1 input voltage range of 18 to 75VDC (48V nominal). The module achieves up to 87% efficiency and offers 1600VDC functional insulation between input and output.
Key features include fully regulated outputs with no minimum load requirement, remote on/off control (active low), and continuous short circuit protection with automatic recovery. Output ripple and noise is 75mV pk-pk (with 0.1µF ceramic cap). Line regulation is ±0.2% and load regulation is ±1%.
The converter is housed in a compact 8-SIP through-hole package measuring 21.9mm x 9.6mm x 11.2mm. It operates over a temperature range of -40°C to +85°C (with derating). This component is intended for ITE (commercial) applications and is compliant with UL 62368-1 safety standard.
| Qty | Low | High |
|---|---|---|
| 1+ | $27.00 | $27.00 |
| 5+ | $26.19 | $26.19 |
| 10+ | $25.38 | $25.38 |
| 20+ | $24.30 | $24.30 |
| 100+ | $23.53 | $23.53 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
18 to 75VDC (48V nominal).
Dual ±15V outputs, each rated at 200mA.
1600VDC (functional insulation).
-40°C to +85°C (with derating).
8-SIP through-hole module (21.9mm x 9.6mm x 11.2mm).
RoHS3 compliant (unverified, low confidence).
Yes, continuous with auto recovery.
