| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Hysteresis | |
| Input Signal | |
| Linearity | |
| Port Size | |
| Pressure Range | |
| Sensitivity | |
| Type |

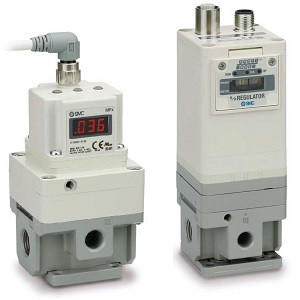

The SMC ITV3010-01N4N4 is an electro-pneumatic regulator belonging to the ITV1000/2000/3000 series. This regulator provides stepless control of air pressure in proportion to electric signals, ensuring precise operation.
Key specifications include a pressure range of 0.1 MPa, a power supply voltage of 24 VDC, and an input signal range of 4 to 20 mA DC (sink type). It features an analog output of 1 to 5 VDC for monitoring. The regulator is equipped with NPT threads and a 1/2" port size, with options for mounting brackets and cable connectors.
Performance characteristics include a sensitivity of 0.2 kPa (at 100 kPa specification), linearity of ±1% or less (F.S.), and hysteresis of 0.5% or less (F.S.). Communication options include CC-Link, DeviceNetTM, PROFIBUS DP, and RS-232C. The unit is CE-compliant and standard for made-to-order items.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pressure range is 0.1 MPa.
The required power supply voltage is 24 VDC.
It accepts Current Type 4 to 20 Ma DC (Sink Type).
The monitor output is Analog Output 1 to 5 VDC.
It features NPT thread type and a 1/2" port size.
Communication options include CC-Link, DeviceNetTM, PROFIBUS DP, and RS-232C.
Yes, it is CE-compliant.
