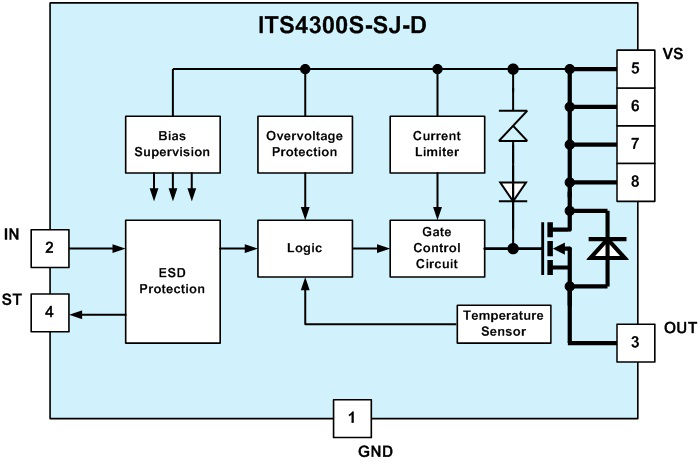

The Infineon ITS4300S-SJ-D is a protected single-channel Smart High-Side NMOS-Power Switch designed for 12V and 24V DC applications. It features a CMOS-compatible input and diagnostic feedback, making it suitable for switching resistive, inductive, and capacitive loads.
Key electrical specifications include an operating voltage range of 5V to 34V, a typical on-state resistance of 300 m℆, and a nominal load current of 0.4A. The device also offers a very low standby current of 26 µA and overvoltage protection up to 41V.
This switch is housed in a PG-DSO-8 package and is qualified for industrial applications according to JEDEC standards. Its design includes features like overload protection, short circuit protection, and thermal shutdown with restart capabilities.
The operating voltage range is from 5V to 34V.
The typical on-state resistance is 300 m℆.
The nominal load current is 0.4A.
The standby current is 26 µA.
The operating temperature range is -40°C to 125°C.
The minimum overvoltage protection is 41V.
The ITS4300S-SJ-D is supplied in a PG-DSO-8 package.
