ITS4200S-ME-P The Infineon ITS4200S-ME-P is a smart high-side NMOS power switch designed for 12V and 24V DC applications. It offers robust protection features and a compact SOT-223-4 package.
Mfr Part #:

ITS4200S-ME-P

Available from 1 distributors
Mfr Name: Infineon
Infineon
The Infineon ITS4200S-ME-P is a smart high-side NMOS power switch designed for 12V and 24V DC applications. It offers robust protection features and a compact SOT-223-4 package.
✓ Total Stock: 1,079 pcs

ITS4200S-ME-P Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
1,079 pcs
On Request
1079 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ITS4200S-ME-P Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Industrial Grade
Medical Grade
Military Grade
Operating Temperature
Operating Voltage
Package / Case
View Similar Products (0)

ITS4200S-ME-P Description

Short technical summary and product information.

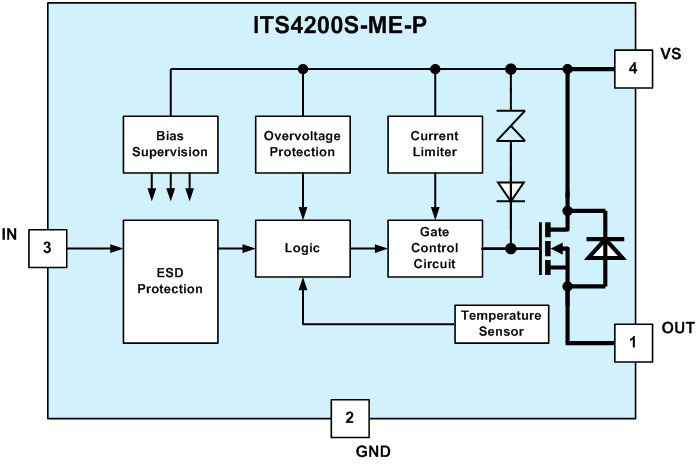

The Infineon ITS4200S-ME-P is a protected single-channel smart high-side NMOS-power switch. It is designed for switching resistive, inductive, and capacitive loads in 12V and 24V DC applications, featuring a CMOS-compatible input.



Key electrical specifications include an operating voltage range of 11V to 45V, a typical on-state resistance (Rds(on)) of 150mΩ, and a nominal load current of 1.4A. It also provides a very low standby current of 50µA.



This device integrates several protection features essential for reliable operation, including overload protection, current limitation, short circuit protection, thermal shutdown with restart, and overvoltage protection. It also includes reverse battery protection with an external resistor, loss of GND and Vbb protection, and electrostatic discharge (ESD) protection.



The ITS4200S-ME-P is housed in a SOT-223-4 package, suitable for surface mounting. It is optimized for electromagnetic compatibility (EMC) and is described as a Green Product (RoHS compliant). Note that this part is not qualified for automotive or transportation applications.

ITS4200S-ME-P Quick Information

Product Type: Smart High-Side Switch
Series: PROFET
Canonical Name: Infineon ITS4200S-ME-P Smart High-Side NMOS-Power Switch
Subcategory: Power Distribution Switches, Load Drivers

ITS4200S-ME-P Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ITS4200S-ME-P Features

  • Operates from 11V to 45V supply voltage.
  • 150mOhm typical on-state resistance.
  • 1.4A nominal load current capability.
  • Integrated overload and short circuit protection.
  • Low 50µA standby current.

ITS4200S-ME-P Applications

  • Switches resistive, inductive, capacitive loads.
  • Used in 12V and 24V DC applications.
  • Drives electromagnetic relays effectively.
  • Power management with low off-mode current.

ITS4200S-ME-P FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the ITS4200S-ME-P?

The operating voltage range is 11 V to 45 V.

What is the typical on-state resistance of the ITS4200S-ME-P?

The typical on-state resistance is 150 mΩ.

What is the nominal load current for this smart high-side switch?

The nominal load current is 1.4 A.

What is the operating temperature range?

The operating temperature range is -40 °C to 125 °C.

What is the standby current consumption?

The standby current is 50 µA.

What is the overvoltage protection threshold?

The overvoltage protection threshold is a minimum of 47 V.

What package type is the ITS4200S-ME-P supplied in?

It is supplied in a SOT-223-4 package.
