| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,834 pcs
|
1834 pcs | On Request | 1 | On Request | On Request | 2018+ | On Request | On Request | |
|
1,500 pcs
|
1500 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Operating Temperature | |
| Operating Voltage | |
| Package / Case |

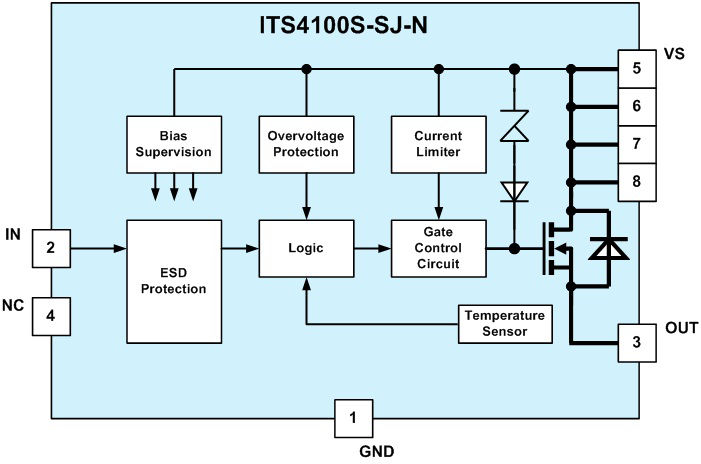

The Infineon ITS4100S-SJ-N is a protected single-channel smart high-side NMOS-power switch designed for industrial applications. It operates within a voltage range of 5V to 34V and can handle a nominal load current of 2.0A.
Key electrical characteristics include a typical on-state resistance of 70 mΩ and a very low standby current of 15 µA. The device offers robust protection features such as overload, short circuit, and thermal shutdown with restart. It also includes overvoltage protection, reverse battery protection with an external resistor, and loss of GND and Vbb protection.
This switch is suitable for switching resistive, inductive, and capacitive loads and is qualified for industrial applications according to JEDEC standards. It comes in a PG-DSO-8 package, supporting various DC applications with a CMOS-compatible control interface.
The operating voltage range is 5V to 34V.
The typical on-state resistance is 70 mΩ.
The nominal load current is 2.0 A.
The standby current is 15 µA.
The operating temperature range is -40°C to 125°C.
The minimum overvoltage protection is 41 V.
The ITS4100S-SJ-N is supplied in a PG-DSO-8 package.
