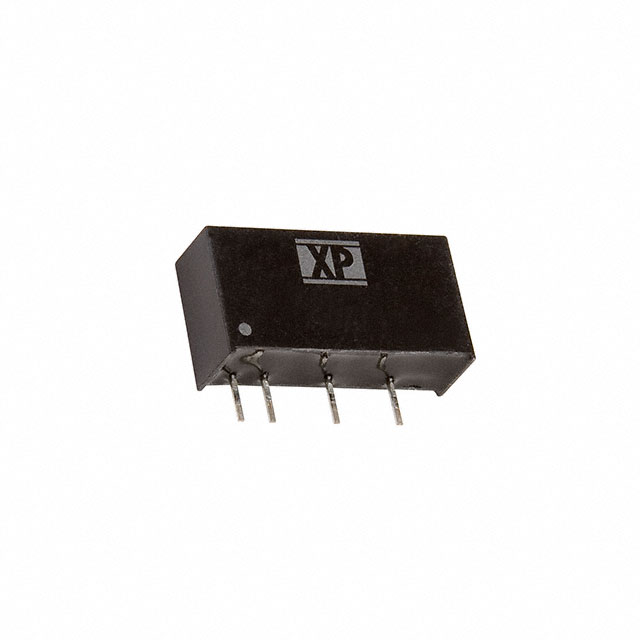

ITB1205S ITB1205S is an isolated DC DC converter module from XP Power. It provides a regulated 5V output at 200mA with 1W power, featuring 80% efficiency and short circuit protection.
Mfr Part #:

ITB1205S

Available from 1 distributors
Mfr Name: XP Power
XP Power
ITB1205S is an isolated DC DC converter module from XP Power. It provides a regulated 5V output at 200mA with 1W power, featuring 80% efficiency and short circuit protection.
✓ Total Stock: 2 pcs
$ Price Range: $7.21

ITB1205S Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ITB1205S Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Output Voltage
Power (Watts)
Tape & Reel
Type
Voltage
Width
View Similar Products (0)

ITB1205S Description

Short technical summary and product information.

The ITB1205S is an isolated DC DC converter module manufactured by XP Power. It delivers a regulated 5V output from a nominal 10.8V input, with an output current of 200mA and power rating of 1W. The module achieves 80% efficiency and includes short circuit protection (SCP) for reliable operation.



Designed for commercial ITE (Information Technology Equipment) applications, the converter operates over a wide temperature range of -40°C to 105°C. The isolated module design provides galvanic isolation between input and output.



The module is housed in a compact 7-SIP (Single Inline Package) with 4 leads, measuring 19.5mm x 6.0mm x 10.0mm. It features through-hole mounting for easy integration into PCB designs. The device is RoHS3 compliant and has an MSL rating of 1 (unlimited).

ITB1205S Quick Information

Product Type: DC DC Converter
Series: ITB
Canonical Name: XP Power ITB1205S Isolated DC DC Converter Module, 5V Output, 1W
Subcategory: DC DC Converters

ITB1205S Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

ITB1205S Estimated Pricing

Qty Low High
20+ $7.21 $7.21

Estimated market price range - modelled values for guidance only, not live distributor offers.

ITB1205S Features

  • Isolated DC DC converter module.
  • 5V output at 200mA, 1W power.
  • 80% typical efficiency.
  • Short circuit protection included.
  • Wide -40°C to 105°C temperature range.

ITB1205S Applications

  • Designed for commercial ITE applications.

ITB1205S FAQs

7 frequently asked questions generated from this part’s specifications.
What is the nominal input voltage of the ITB1205S?

The nominal input voltage is 10.8V.

What is the package type of the ITB1205S?

The package is a 7-SIP Module with 4 leads.

What is the operating temperature range?

-40°C to 105°C.

Is the ITB1205S RoHS compliant?

Yes, it is RoHS3 compliant.

What is the efficiency of the ITB1205S?

80%.

What is the output current?

200mA.

Does the ITB1205S have short circuit protection?

Yes, it features short circuit protection (SCP).
