| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13 pcs
|
13 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Mated Stacking Heights | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

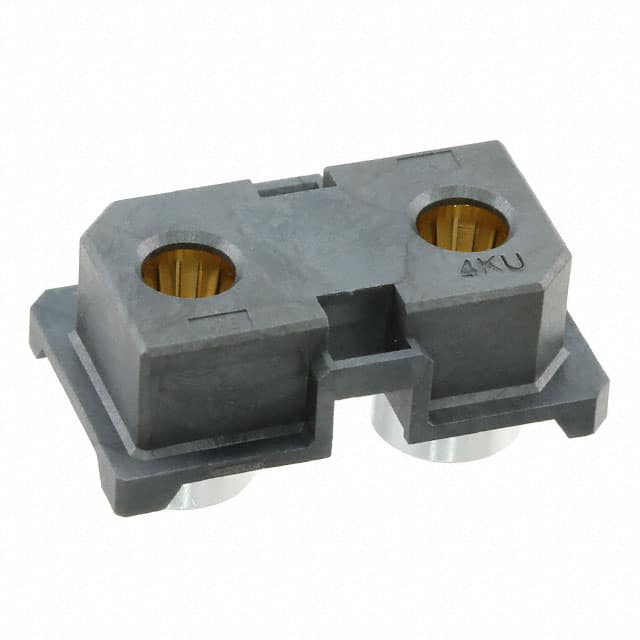

The Hirose IT-PD-2S-DIR is a 2-position, single-row board-to-board receptacle designed for high-current applications. It features a 12.00mm pitch and female socket contacts with a gold finish, ensuring reliable electrical performance. The connector is rated for 60A per contact and 300V, making it suitable for power distribution in electronic assemblies.
This through-hole mount connector uses solder termination and includes a latch holder fastening type for secure mating. The insulation is black with a UL94 V-0 flammability rating, and the operating temperature range is -55°C to 85°C. The mated stacking heights range from 11mm to 44mm, providing flexibility in board spacing.
The connector is designed with pick-and-place features for automated assembly. All 2 positions are loaded in a single row configuration. The contact length is 3.20mm, and the insulation height is 7.40mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $16.43 | $16.43 |
| 10+ | $15.26 | $15.26 |
| 250+ | $15.26 | $15.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The IT-PD-2S-DIR has 2 positions, all loaded, in a single row.
The pitch is 12.00mm (0.472 inches).
The current rating is 60A per contact.
The voltage rating is 300V.
It uses through hole mounting with solder termination.
The operating temperature range is -55°C to 85°C.
The contact finish is gold.
