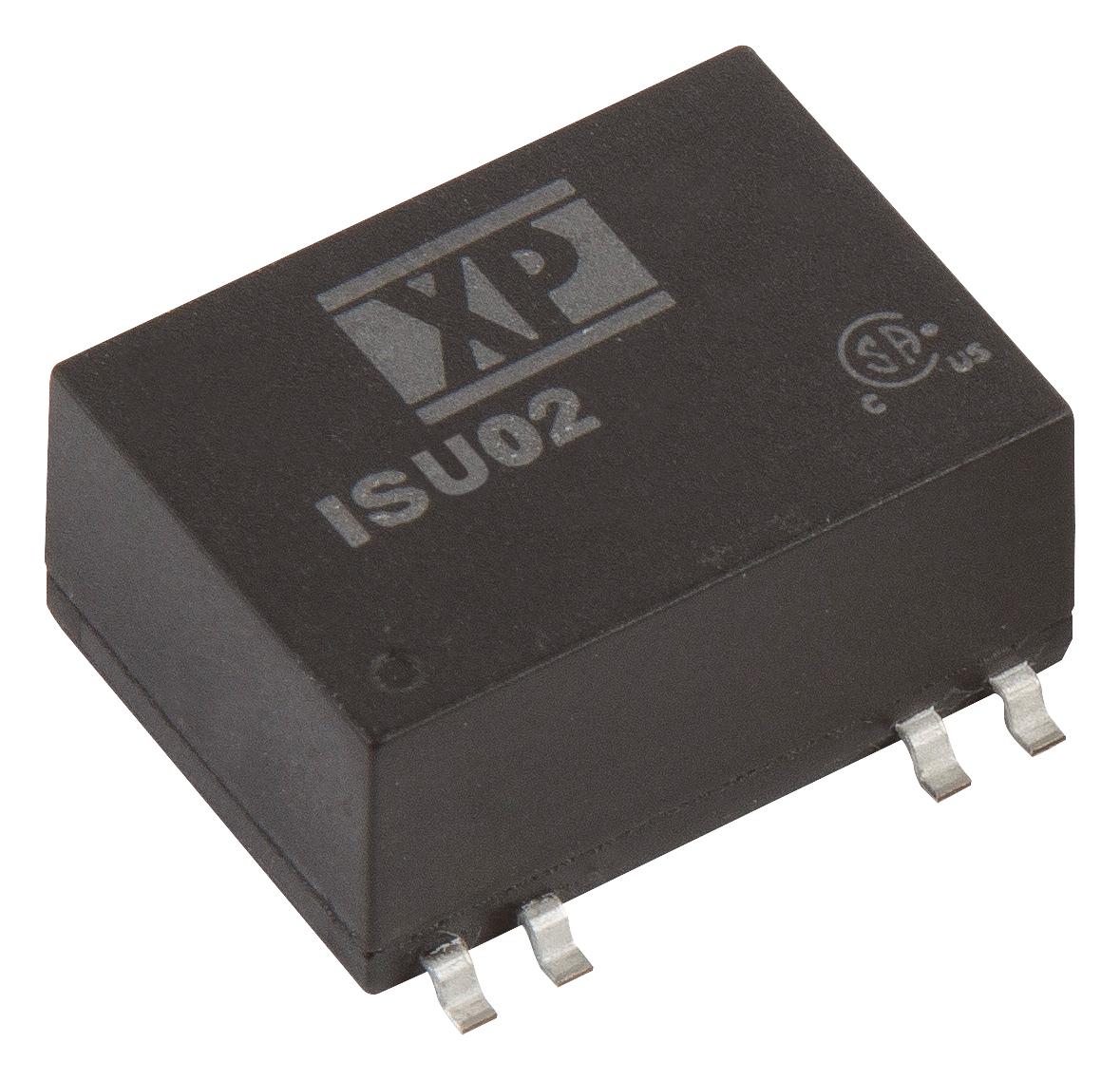

ISU0248S15 The ISU0248S15 is an isolated DC-DC converter from XP Power providing a regulated 15V output at 134mA (2W) from a wide 4:1 input range of 18-75V. It comes in a compact 14-SMD module with surface mount packaging.
Mfr Part #:

ISU0248S15

Available from 1 distributors
Mfr Name: XP Power
XP Power
The ISU0248S15 is an isolated DC-DC converter from XP Power providing a regulated 15V output at 134mA (2W) from a wide 4:1 input range of 18-75V. It comes in a compact 14-SMD module with surface mount packaging.
✓ Total Stock: 10 pcs
$ Price Range: $23.30 - $27.19

ISU0248S15 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ISU0248S15 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Features
Height
Industrial Grade
Lead Spacing
Length
Mounting Type
Number of Outputs
Operating Temperature
Power (Watts)
SVHC Present
Standard Number
Storage Temperature
Tape & Reel
Type
Voltage
Width
View Similar Products (0)

ISU0248S15 Description

Short technical summary and product information.

The XP Power ISU0248S15 is a 2W isolated DC-DC converter from the ISU02 series. It provides a single regulated 15V output at up to 134mA from a wide 4:1 input voltage range of 18V to 75V. The module features 1500VDC isolation, making it suitable for applications requiring galvanic isolation. With an efficiency of 82%, it minimizes power loss. The converter includes remote on/off control and short circuit protection (SCP). It is designed for commercial ITE (Information Technology Equipment) applications and is approved to UL 62368-1, CE, and UKCA standards. The surface mount package is a 14-SMD module with 7 leads, measuring 19.1mm x 15.0mm x 8.6mm. It operates over a temperature range of -40°C to 95°C with derating. Output ripple and noise is 50 mV pk-pk, with line regulation of ±0.5% and load regulation of ±1.0%.

ISU0248S15 Quick Information

Product Type: DC-DC Converter
Series: ISU02
Canonical Name: XP Power ISU0248S15 DC-DC Converter, 15V Output, 2W, Isolated Module
Subcategory: Isolated Module

ISU0248S15 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 95
REACH Status: REACH Unaffected

ISU0248S15 Estimated Pricing

Qty Low High
1+ $27.19 $27.19
5+ $26.37 $26.37
10+ $25.56 $25.56
30+ $24.47 $24.47
100+ $23.58 $23.58
250+ $23.57 $23.57
500+ $23.30 $23.30

Estimated market price range - modelled values for guidance only, not live distributor offers.

ISU0248S15 Features

  • Wide 4:1 input voltage range 18-75V.
  • Regulated 15V output at 134mA.
  • 1500VDC isolation for safety.
  • Surface mount 14-SMD package.
  • Remote on/off and short circuit protection.

ISU0248S15 Applications

  • Ideal for commercial ITE equipment.
  • Used in industrial control systems.
  • Suitable for battery-powered applications.
  • Can be used in telecom infrastructure.

ISU0248S15 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the ISU0248S15?

The input voltage range is 18V to 75V (4:1 ratio).

What is the package type of the ISU0248S15?

It comes in a 14-SMD Module with 7 leads, surface mount.

What is the operating temperature range?

-40°C to 95°C with derating.

Is the ISU0248S15 RoHS compliant?

It is listed as RoHS3 compliant, but this status is unverified.

What is the isolation voltage?

1500 VDC minimum.

What is the output current capability?

134 mA maximum.

What is the efficiency?

82% typical.
