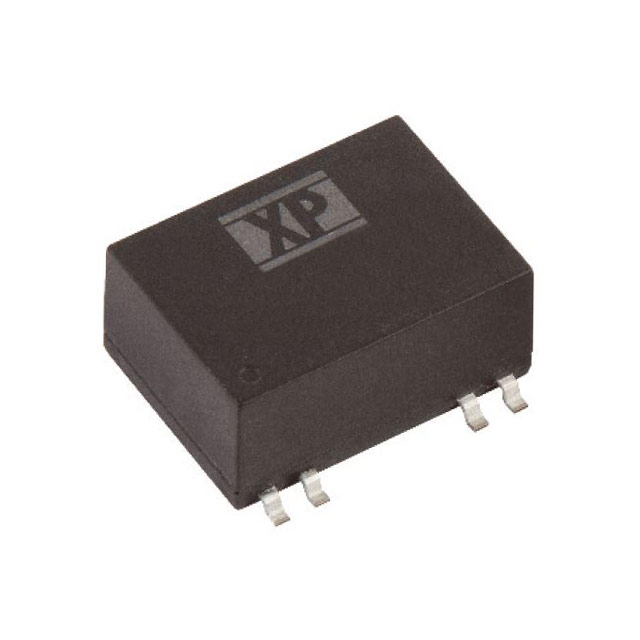

The ISU0248S05 is a 2W isolated DC-DC converter from XP Power's ISU02 series. It accepts a wide 4:1 input voltage range of 18V to 75V (48V nominal) and delivers a regulated single output of 5V at 400mA. Typical efficiency is 78%.
The converter provides 1500VDC input-to-output isolation, ensuring galvanic separation for sensitive loads. Output ripple and noise are limited to 50mV pk-pk (20MHz bandwidth). Line regulation is ±0.5% and load regulation is ±1.0%, with initial set accuracy of ±1.0%. It supports a maximum capacitive load of 1680µF.
Protection features include continuous short circuit protection with automatic recovery and remote on/off control. The device operates over -40°C to +95°C with derating and is designed for commercial ITE applications. It is certified to UL/CE/UKCA 62368-1.
The ISU0248S05 is housed in a 14-SMD surface mount module with 7 leads, measuring 19.1mm x 15.0mm x 8.5mm (0.75" x 0.59" x 0.33"). This compact, low-profile package is suitable for space-constrained board-level designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $27.73 | $27.73 |
| 5+ | $26.90 | $26.90 |
| 10+ | $26.07 | $26.07 |
| 30+ | $24.96 | $24.96 |
| 100+ | $23.29 | $23.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 18V to 75V (48V nominal).
Output is 5V at 400mA maximum.
Operating temperature range is -40°C to +95°C with derating.
It comes in a 14-SMD Module, 7 leads surface mount package.
The isolation voltage is 1500VDC.
RoHS status is listed as RoHS3 compliant but unverified; low confidence.
It features continuous short circuit protection with auto recovery and remote on/off control.
