| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
27 pcs
|
27 pcs | On Request | 1 | On Request | On Request | 08+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Failure Rate | |
| Industrial Grade | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Gates | |
| Number of I/O | |
| Operating Temperature | |
| Programmable Type | |
| SVHC Present | |
| Supplier Device Package |

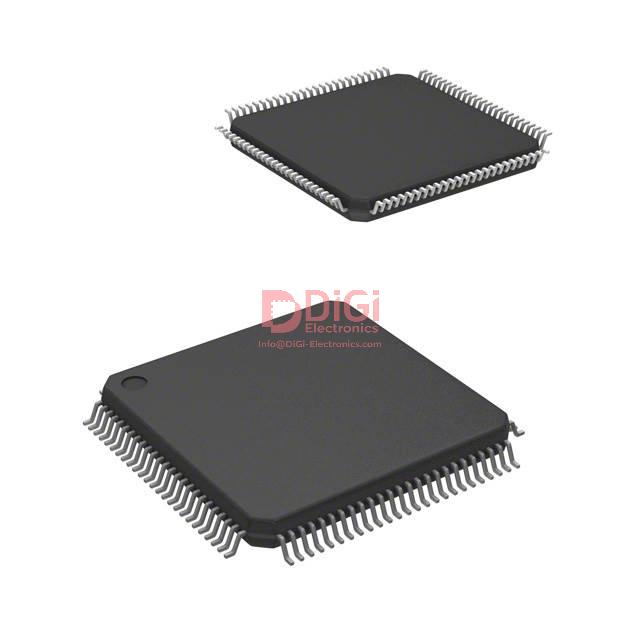

The Lattice Semiconductor ISPLSI5256VE-80LT100I is a Complex Programmable Logic Device (CPLD) from the ispLSI® 5000VE series. This obsolete part offers 256 macrocells and 12,000 gates, with a maximum propagation delay of 12 ns. It is designed for in-system programmability and operates with an internal supply voltage between 3V and 3.6V.
The device features 72 I/O pins and is housed in a 100-TQFP package, suitable for surface mounting. The operating temperature range is -40°C to 85°C (TA). This CPLD is identified by its base product number ISPLSI 5.
Key electrical characteristics include its 256 macrocell count and 12 ns propagation delay. The component is surface-mounted, requiring a 100-TQFP package. Its operational parameters are optimized for embedded applications requiring programmable logic.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3V to 3.6V (internal supply).
-40°C to +85°C.
100-LQFP (supplier package 100-TQFP 14x14).
256.
12 ns maximum.
72.
Yes, it is in-system programmable.
