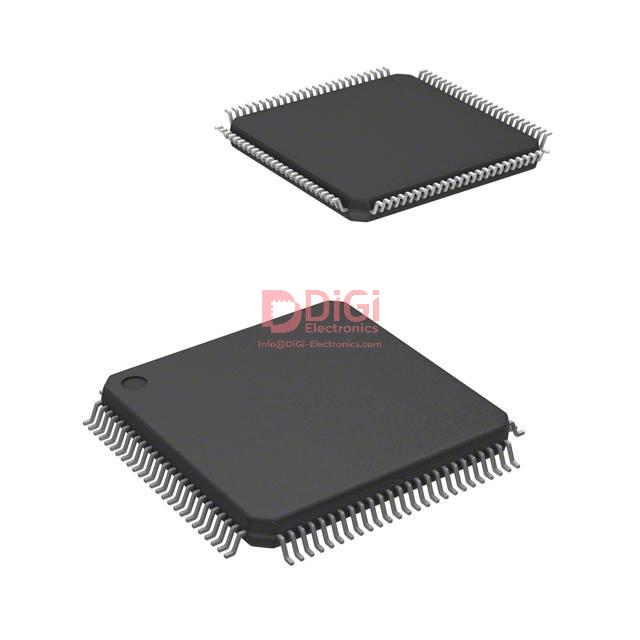

ISPLSI2128VE100LT100 The Lattice Semiconductor ISPLSI2128VE100LT100 is a Complex Programmable Logic Device (CPLD) with 128 macrocells and a 10ns propagation delay. It operates within a 3V to 3.6V supply voltage range.
Mfr Part #:

ISPLSI2128VE100LT100

Available from 1 distributors
Mfr Name: Lattice Semiconductor Corporation
Lattice Semiconductor Corporation
The Lattice Semiconductor ISPLSI2128VE100LT100 is a Complex Programmable Logic Device (CPLD) with 128 macrocells and a 10ns propagation delay. It operates within a 3V to 3.6V supply voltage range.
✓ Total Stock: 35 pcs
$ Price Range: $0.50

ISPLSI2128VE100LT100 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
35 pcs
On Request
35 pcs On Request 1 On Request On Request 9949 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ISPLSI2128VE100LT100 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Delay Time
Failure Rate
Lead Spacing
Lead Style
Mounting Type
Number of Gates
Number of I/O
Programmable Type
SVHC Present
Supplier Device Package
View Similar Products (0)

ISPLSI2128VE100LT100 Description

Short technical summary and product information.

The Lattice Semiconductor ISPLSI2128VE100LT100 is an In System Programmable CPLD from the ispLSI® 2000VE series. It features 128 macrocells and 32 logic elements/blocks, with a total of 6000 gates. The device supports up to 64 I/O pins and has a maximum propagation delay of 10 ns.



Designed for embedded applications, this CPLD operates with an internal supply voltage between 3V and 3.6V. It is specified for operation in temperatures ranging from 0°C to 70°C. The component is available in a 100-TQFP package and is designed for surface mounting.



This product is marked as obsolete. It is suitable for applications requiring programmable logic with moderate complexity and specific voltage requirements.

ISPLSI2128VE100LT100 Quick Information

Product Type: CPLD
Series: ispLSI® 2000VE
Canonical Name: Lattice Semiconductor Corporation ISPLSI2128VE-100LT100 CPLD
Subcategory: Complex Programmable Logic Devices

ISPLSI2128VE100LT100 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ISPLSI2128VE100LT100 Estimated Pricing

Qty Low High
1+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

ISPLSI2128VE100LT100 Features

  • 128 macrocells for complex logic.
  • 10ns maximum propagation delay.
  • 3V to 3.6V internal supply voltage.
  • 64 I/O pins for flexible interfacing.
  • 0°C to 70°C operating temperature.

ISPLSI2128VE100LT100 Applications

  • Embedded system logic control.
  • Programmable logic implementation.
  • Digital signal routing.
  • Interface logic design.

ISPLSI2128VE100LT100 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range?

3V to 3.6V.

What package does the ISPLSI2128VE100LT100 come in?

100-LQFP and 100-TQFP (14x14) surface mount.

What is the operating temperature range?

0°C to 70°C.

How many macrocells does it have?

128 macrocells.

What is the propagation delay?

10 ns maximum.

Is it programmable?

Yes, in-system programmable.

Is this product obsolete?

Yes, the product status is obsolete.
