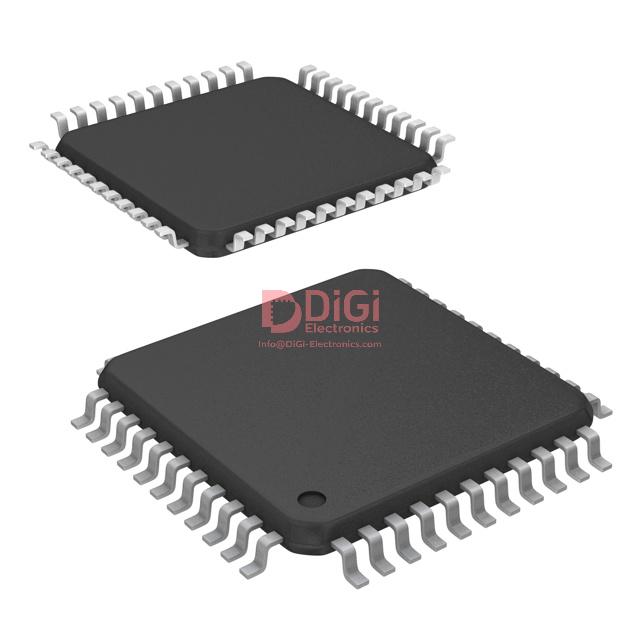

ISPLSI2032E-135LT44 The Lattice Semiconductor ISPLSI2032E-135LT44 is a Complex Programmable Logic Device (CPLD) with 32 macrocells and a 7.5 ns propagation delay. It comes in a 44-TQFP package.
Mfr Part #:

ISPLSI2032E-135LT44

Available from 3 distributors
Mfr Name: Lattice Semiconductor Corporation
Lattice Semiconductor Corporation
The Lattice Semiconductor ISPLSI2032E-135LT44 is a Complex Programmable Logic Device (CPLD) with 32 macrocells and a 7.5 ns propagation delay. It comes in a 44-TQFP package.
✓ Total Stock: 937 pcs
$ Price Range: $0.50

ISPLSI2032E-135LT44 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
749 pcs
On Request
749 pcs On Request 1 On Request On Request 1047 On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
94 pcs
On Request
94 pcs On Request 1 On Request On Request On Request On Request On Request
RAD ✓
Non-Authorised Inventory information
94 pcs
On Request
94 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ISPLSI2032E-135LT44 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Failure Rate
Halogen Free
Mounting Type
Number of Gates
Number of I/O
Operating Temperature
Programmable Type
SVHC Present
Supplier Device Package
Supplier Package
View Similar Products (0)

ISPLSI2032E-135LT44 Description

Short technical summary and product information.

The Lattice Semiconductor ISPLSI2032E-135LT44 is an In System Programmable CPLD from the ispLSI® 2000E series. This device features 32 macrocells, 8 logic elements/blocks, and 1000 gates, offering a maximum propagation delay of 7.5 ns. It operates within an internal supply voltage range of 4.75V to 5.25V and has 32 I/O pins.



Designed for surface mounting, the ISPLSI2032E-135LT44 is housed in a 44-TQFP package, with the supplier device package specified as 44-TQFP (10x10). The operating temperature range for this component is 0°C to 70°C (TA). This product is classified as obsolete.



This CPLD is suitable for embedded applications requiring programmable logic. Its specifications make it a component for various digital logic designs.

ISPLSI2032E-135LT44 Quick Information

Product Type: CPLD
Series: ispLSI® 2000E
Canonical Name: Lattice Semiconductor Corporation ISPLSI2032E-135LT44 CPLD
Subcategory: CPLD

ISPLSI2032E-135LT44 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: No

ISPLSI2032E-135LT44 Estimated Pricing

Qty Low High
1+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

ISPLSI2032E-135LT44 Features

  • 32 macrocells for complex logic.
  • Fast 7.5 ns propagation delay.
  • Operates at 4.75V to 5.25V.
  • Surface mount 44-TQFP package.
  • In System Programmable device.

ISPLSI2032E-135LT44 Applications

  • Glue logic for microprocessor systems.
  • Control logic for industrial equipment.
  • Prototyping and low-volume production.
  • I/O expansion and bus bridging.

ISPLSI2032E-135LT44 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the ISPLSI2032E-135LT44?

4.75 V to 5.25 V.

What package does the ISPLSI2032E-135LT44 come in?

44-TQFP (10x10 mm).

What is the operating temperature range?

0°C to 70°C.

How many macrocells does the ISPLSI2032E-135LT44 have?

32 macrocells.

What is the propagation delay of this CPLD?

7.5 ns maximum.

What is the programmable type of the ISPLSI2032E-135LT44?

In System Programmable.

How many I/O pins are available?

32 I/O pins.
