| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,212 pcs
|
9212 pcs | On Request | 1 | On Request | On Request | 0037+ | On Request | On Request | |
|
960 pcs
|
960 pcs | On Request | 1 | On Request | On Request | 00+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Delay Time tpd(1) Max | |
| Lead Spacing | |
| Mounting Type | |
| Number of Gates | |
| Number of I | |
| Number of Logic Elements | |
| Number of Macrocells | |
| Operating Temperature | |
| Programmable Type | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage Supply |

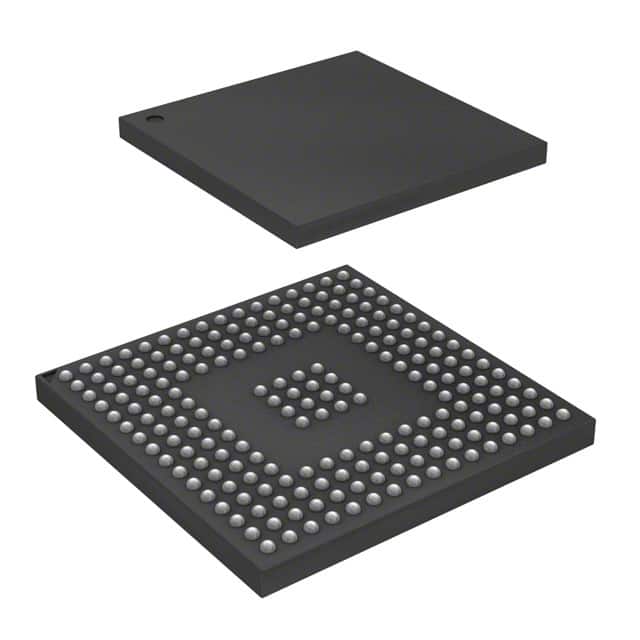

The ISPLSI 5256VA-100LB208 from Lattice Semiconductor Corporation is a Complex Programmable Logic Device (CPLD) designed for system-level integration. It features 256 macrocells and supports up to 144 I/O pins, making it suitable for a wide range of digital logic applications.
This CPLD offers a propagation delay of 10 ns and operates within a voltage supply range of 3V to 3.6V. It is designed for In System Programmable (ISP) functionality, allowing for flexible design and updates.
The device is housed in a 208-FPBGA (17x17) package and is designed for surface mounting. The operating temperature range is 0°C to 70°C (TA). Its architecture provides 12000 gates of logic and 8 logic elements.
This CPLD is suitable for applications requiring high-density logic, fast switching speeds, and in-system programmability. Its robust design and specifications make it a reliable choice for embedded systems and digital control applications.
The ISPLSI 5256VA-100LB208 has 256 macrocells.
The ISPLSI 5256VA-100LB208 has 144 I/O pins.
The maximum propagation delay (tpd(1)) for the ISPLSI 5256VA-100LB208 is 10 ns.
The ISPLSI 5256VA-100LB208 operates with a supply voltage between 3V and 3.6V.
The operating temperature range for this device is 0°C to 70°C (TA).
The ISPLSI 5256VA-100LB208 is supplied in a 208-FPBGA (17x17) package.
This CPLD is a surface mount device.
