Mfr Part #:

ISP772T

Mfr Name: Infineon

The Infineon ISP772T is a smart high-side switch designed for industrial applications. It features a wide operating voltage range and integrated protection functions.

✓ Total Stock: 1,485 pcs

$ Price Range: $0.32

ISP772T Available from 3 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Xingangxin ✓ Non-Authorised Inventory information	1,472 pcs On Request	1472 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Bristol Electronics ✓ Non-Authorised Inventory information	11 pcs On Request	11 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
MW.FEP S.p.A. ✓ Non-Authorised Inventory information	2 pcs On Request	2 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

ISP772T Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Infineon
Halogen Free	Green product (RoHS compliant)
Operating Temperature	-30 to +85 °C
Operating Voltage	5 to 34 V

View Similar Products (0)

ISP772T Description

Short technical summary and product information.

The Infineon ISP772T is a smart power high-side switch designed for 12 V and 24 V DC industrial applications. It is suitable for driving all types of resistive, inductive, and capacitive loads, and can replace electromechanical relays and discrete circuits.

Key electrical specifications include an operating voltage range of 5 to 34 V, a typical on-state resistance of 60 m℆, and a nominal load current of 2.6 A. The device also offers overvoltage protection up to 41 V.

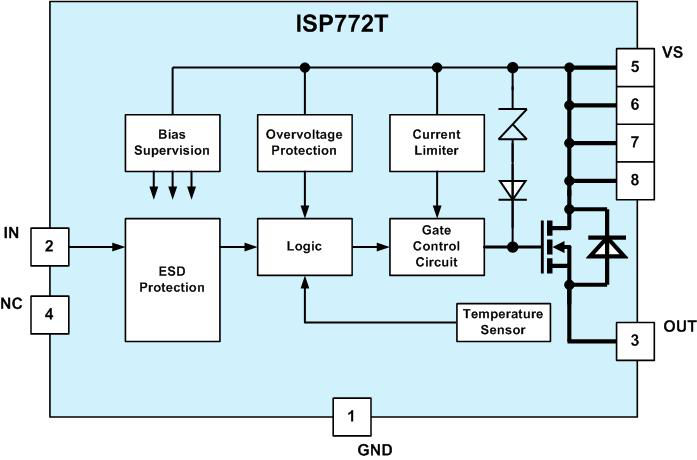

This switch is qualified for industrial applications according to JEDEC standards. It features integrated protective functions such as overload protection, current limitation, short circuit protection, and thermal shutdown with restart. The device is housed in a PG-DSO-8 package and operates within a temperature range of -30 to +85 °C.

Its design includes a CMOS compatible input and offers reverse battery protection with an external resistor, fast demagnetization of inductive loads, and loss of GND and Vbb protection. The ISP772T is also noted as a green product, compliant with RoHS standards.

ISP772T Quick Information

Product Type: Smart Power High-Side Switch

Series: ISP

Canonical Name: ISP772T Smart high-side switch

Subcategory: High-Side Switch

ISP772T Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

ISP772T Estimated Pricing

Qty	Low	High
1+	$0.32	$0.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

ISP772T Features

Smart high-side switch for industrial use.
Wide 5V to 34V operating voltage range.
Low 60m℆ typical on-state resistance.
Integrated overload and short circuit protection.
Operates from -30°C to +85°C.

ISP772T Applications

Drives resistive, inductive, and capacitive loads.
Ideal for 12V and 24V DC systems.
Replaces electromechanical relays.
Used in industrial control applications.

ISP772T FAQs

7 frequently asked questions generated from this part’s specifications.

What is the operating voltage range for the ISP772T?

The operating voltage range is 5 to 34 V.

What is the typical on-state resistance of the ISP772T?

The typical on-state resistance is 60 m℆.

What is the nominal load current for the ISP772T?

The nominal load current is 2.6 A.

What is the operating temperature range for the ISP772T?

The operating temperature range is -30 to +85 °C.

What is the overvoltage protection rating for the ISP772T?

The overvoltage protection is 41 V.

What package type is the ISP772T supplied in?

The ISP772T is supplied in a PG-DSO-8 package.

Is the ISP772T RoHS compliant?

Yes, the ISP772T is RoHS3 Compliant.
