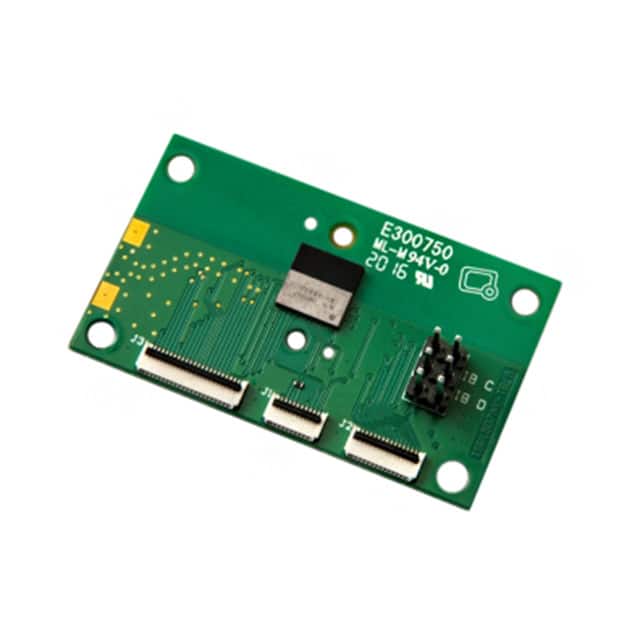

ISP1507-AX-TB ISP1507-AX-TB is a test board for the ISP1507-AX module, featuring ANT and Bluetooth Smart 4.x Low Energy (BLE) connectivity at 2.4 GHz. It includes 512 KB flash memory and 64 KB RAM.
Mfr Part #:

ISP1507-AX-TB

Available from 1 distributors
Mfr Name: Insight SIP
Insight SIP
ISP1507-AX-TB is a test board for the ISP1507-AX module, featuring ANT and Bluetooth Smart 4.x Low Energy (BLE) connectivity at 2.4 GHz. It includes 512 KB flash memory and 64 KB RAM.
✓ Total Stock: 5 pcs
$ Price Range: $24.00

ISP1507-AX-TB Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Seba Components ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ISP1507-AX-TB Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
For Use With
Frequency
RAM Size
Supplied Contents
Tape & Reel
Type
View Similar Products (0)

ISP1507-AX-TB Description

Short technical summary and product information.

The ISP1507-AX-TB is a test board designed by Insight SiP for the ISP1507-AX module. It supports ANT and Bluetooth Smart 4.x Low Energy (BLE) wireless protocols operating at 2.4 GHz. The board integrates 512 KB of flash memory and 64 KB of RAM, providing sufficient resources for development and prototyping of wireless applications.



This test board is part of the ISP1507 development kit, which includes an interface board with integrated J-Link OB JTAG/SWD emulator. It offers test points for all IOs and can be used with a Nordic Development kit or an external J-Link programmer. The board is supplied as a single board.



The ISP1507-AX-TB is suitable for developing Bluetooth Smart solutions, enabling engineers to evaluate the ISP1507 module's performance and integrate it into their designs. The board operates at 2.4 GHz frequency and is compliant with RoHS and REACH requirements.

ISP1507-AX-TB Quick Information

Product Type: RF Evaluation and Development Kit, Board
Canonical Name: ISP1507-AX-TB Test Board for ISP1507-AX Module
Subcategory: Bluetooth Low Energy Development Board

ISP1507-AX-TB Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ISP1507-AX-TB Estimated Pricing

Qty Low High
1+ $24.00 $24.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

ISP1507-AX-TB Features

  • Supports ANT and Bluetooth 4.x Low Energy.
  • Operates at 2.4 GHz frequency.
  • Includes 512 KB flash memory.
  • Includes 64 KB RAM.
  • Provides test points for all IOs.

ISP1507-AX-TB Applications

  • Ideal for Bluetooth Smart development projects.
  • Used for prototyping wireless sensor networks.
  • Suitable for ANT+ fitness device evaluation.
  • Enables testing of IoT connectivity solutions.

ISP1507-AX-TB FAQs

6 frequently asked questions generated from this part’s specifications.
What wireless protocols does the ISP1507-AX-TB support?

It supports ANT and Bluetooth Smart 4.x Low Energy (BLE).

What is the operating frequency of the board?

2.4 GHz.

What memory is included on the board?

512 KB flash memory and 64 KB RAM.

Is the ISP1507-AX-TB RoHS compliant?

Yes, it is RoHS3 compliant.

What is the MSL level of the board?

MSL Level 1 (Unlimited).

What is the part number of the associated evaluation board?

The ISP1507-AX-EB is the evaluation board.
