Mfr Part #:

ISP1507-AX-EB

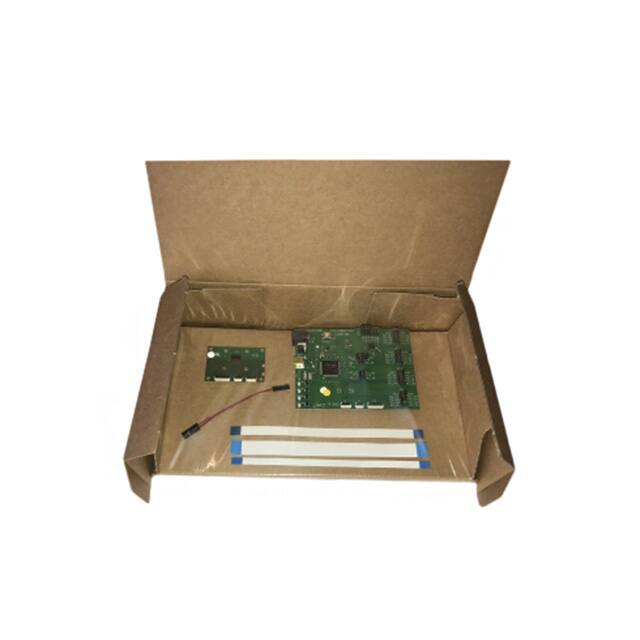

Insight SIP ISP1507-AX-EB evaluation kit for the ISP1507-AX BLE/ANT transceiver module, operating at 2.4 GHz with 512 KB flash and 64 KB RAM. Includes interface board with J-Link OB JTAG/SWD emulator, test board, NFC antenna, and cables.

✓ Total Stock: 5 pcs

$ Price Range: $99.00

ISP1507-AX-EB Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Seba Components ✓ Non-Authorised Inventory information	5 pcs On Request	5 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

ISP1507-AX-EB Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	RF Evaluation and Development Kits, Boards
Manufacturer Name	Insight SIP
For Use With	ISP1507-AX
Frequency	2.4 GHz
Supplied Contents	Board(s), Cable(s)
Tape & Reel	No
Type	Transceiver; ANT, Bluetooth® Smart 4.x Low Energy (BLE)

View Similar Products (0)

ISP1507-AX-EB Description

Short technical summary and product information.

The Insight SIP ISP1507-AX-EB is an evaluation kit designed for the ISP1507-AX Bluetooth Smart 4.x Low Energy (BLE) and ANT transceiver module. It operates at 2.4 GHz and is supplied with boards and cables for immediate development. The kit includes an interface board with an integrated J-Link OB JTAG/SWD emulator, a test board with the ISP1507 module, an NFC antenna, and cables.

The ISP1507-AX version integrates 512 KB flash and 64 KB RAM memory, providing ample resources for firmware development. The test board offers test points for all IOs and can be used with a Nordic Development kit through the Debug connector or an external J-Link programmer. This evaluation kit provides a complete hardware and software development environment for product developers working on Bluetooth Smart solutions.

The kit is intended for prototyping and testing purposes, helping developers save time to market by avoiding starting from a blank sheet of paper. The on-board J-Link OB emulator simplifies debugging and programming during development.

ISP1507-AX-EB Quick Information

Product Type: RF Evaluation and Development Kit

Series: ISP1507

Canonical Name: ISP1507-AX Evaluation Board

Subcategory: RF Evaluation and Development Kits, Boards

ISP1507-AX-EB Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

ISP1507-AX-EB Estimated Pricing

Qty	Low	High
1+	$99.00	$99.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

ISP1507-AX-EB Features

2.4 GHz BLE and ANT transceiver.
512 KB flash and 64 KB RAM.
Integrated J-Link OB JTAG/SWD emulator.
Includes test board and NFC antenna.
Supplied with boards and cables.

ISP1507-AX-EB Applications

Bluetooth Smart 4.x application development.
ANT protocol development and testing.
Prototyping with ISP1507-AX module.
Debugging via J-Link or Nordic kit.

ISP1507-AX-EB FAQs

4 frequently asked questions generated from this part’s specifications.

What is the operating frequency of the ISP1507-AX-EB evaluation kit?

The kit operates at 2.4 GHz, supporting ANT and Bluetooth Smart 4.x Low Energy (BLE) transceiver functionality.

What memory does the ISP1507-AX version include?

The ISP1507-AX version integrates 512 KB flash and 64 KB RAM memory.

What emulator is included on the interface board?

The interface board includes an integrated J-Link OB JTAG/SWD emulator.

What is included in the supplied contents of the kit?

The kit is supplied with board(s) and cable(s), including an interface board, test board, NFC antenna, and cables.
