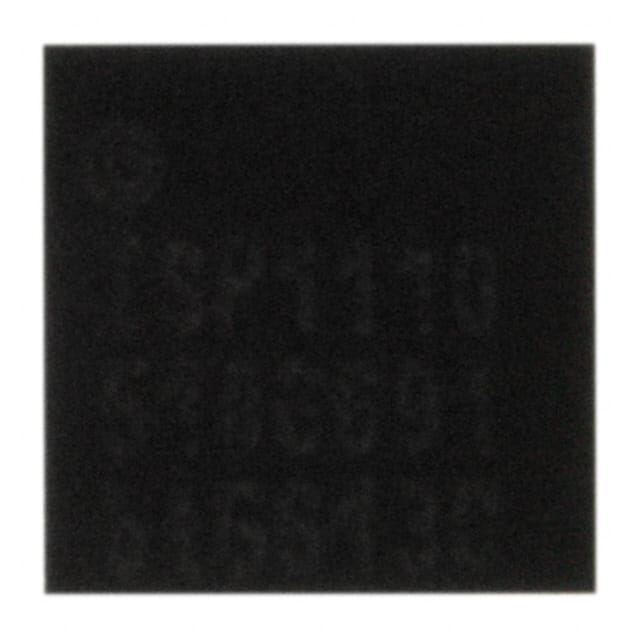

ISP1110VHTS The ST ISP1110VHTS is a USB 2.0 transceiver supporting full-speed data transfer at 12 Mbps. It operates in half-duplex mode and is available in a surface mount package.
Mfr Part #:

ISP1110VHTS

Available from 1 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The ST ISP1110VHTS is a USB 2.0 transceiver supporting full-speed data transfer at 12 Mbps. It operates in half-duplex mode and is available in a surface mount package.
✓ Total Stock: 34,200 pcs

ISP1110VHTS Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
34,200 pcs
On Request
34200 pcs On Request 1 On Request On Request 1119+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ISP1110VHTS Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Data Rate
Duplex
Halogen Free
Mounting Type
Number of Drivers
Operating Temperature
Protocol
Receiver Hysteresis
Supplier Device Package
Type
Voltage
View Similar Products (0)

ISP1110VHTS Description

Short technical summary and product information.

The ISP1110VHTS from ST is a Universal Serial Bus (USB) transceiver designed to support Universal Asynchronous Receiver-Transmitter (UART) signaling mode. It is fully compliant with the Universal Serial Bus Specification Rev. 2.0 and can transmit and receive USB data at full-speed (12 Mbit/s).



This transceiver allows USB Application Specific Integrated Circuits (ASICs) with I/O power supply voltages from 1.65 V to 2.85 V to interface with the USB physical layer. It features an integrated 5 V-to-3.3 V voltage regulator for direct powering through the USB supply line VBUS and an integrated voltage detector to indicate VBUS presence. When VBUS is not present, the transceiver can be set to UART signaling mode.



The ISP1110VHTS supports a VCC(UART) voltage range from 2.7 V to 4.5 V and operates within an ambient temperature range of -40°C to 85°C. It is available in a compact 16-HBCC (3x3 mm) lead-free and halogen-free package, suitable for surface mounting.



Key features include full compliance with USB Specification Rev. 2.0, support for 12 Mbit/s data transfer, an integrated DP pull-up resistor, and bidirectional VP and VM pins for pin count saving. It also offers low-power operation with static current from VCC(I/O) typically at 1 μA.

ISP1110VHTS Quick Information

Product Type: USB Transceiver
Canonical Name: ISP1110VHTS Universal Serial Bus Transceiver
Subcategory: USB Transceiver

ISP1110VHTS Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead-free

ISP1110VHTS Features

  • Fully complies with USB Specification Rev. 2.0.
  • Supports USB data transfer at full-speed (12 Mbit/s).
  • Integrated 5 V-to-3.3 V voltage regulator.
  • Available in lead-free and halogen-free package.
  • Supports UART signaling mode on DP and DM lines.

ISP1110VHTS Applications

  • Interfaces ASICs to the USB physical layer.
  • Enables USB communication in embedded systems.
  • Suitable for devices requiring UART signaling.
  • Designed for low-power applications.

ISP1110VHTS FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the ISP1110VHTS?

The operating voltage for the ISP1110VHTS is between 4V and 5.5V.

What is the operating temperature range of this transceiver?

The ISP1110VHTS operates in a temperature range of -40°C to 85°C.

What package type is the ISP1110VHTS available in?

The ISP1110VHTS is available in a 16-HBCC (3x3) package and a 16-WFQFN Exposed Pad package.

Does the ISP1110VHTS comply with RoHS standards?

Yes, the ISP1110VHTS is RoHS3 Compliant.

What is the data rate supported by the ISP1110VHTS?

The ISP1110VHTS supports a data rate of 12Mbps.

What USB specification does the ISP1110VHTS comply with?

The ISP1110VHTS is fully compliant with Universal Serial Bus Specification Rev. 2.0.

What is the I/O power supply voltage range for this transceiver?

The I/O power supply voltage range for the ISP1110VHTS is from 1.65 V to 2.85 V.
