ISOW1044DFMR The Texas Instruments ISOW1044DFMR is an isolated CAN FD transceiver with an integrated low-emissions DC-DC converter. It supports data rates up to 5 Mbps and offers 5 kVrms isolation.
Mfr Part #:

ISOW1044DFMR

Available from 1 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments ISOW1044DFMR is an isolated CAN FD transceiver with an integrated low-emissions DC-DC converter. It supports data rates up to 5 Mbps and offers 5 kVrms isolation.
✓ Total Stock: 77 pcs
$ Price Range: $4.27

ISOW1044DFMR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
77 pcs
On Request
77 pcs On Request 1 On Request On Request 25+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ISOW1044DFMR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Data Rate
Duplex
Efficiency
Lead Spacing
Mounting Type
Number of Drivers
Operating Temperature
Protocol
Receiver Hysteresis
Supplier Device Package
Supplier Package
Type
Voltage
Working Voltage
View Similar Products (0)

ISOW1044DFMR Description

Short technical summary and product information.

The ISOW1044DFMR from Texas Instruments is a galvanically-isolated CAN FD transceiver designed for space-constrained applications. It integrates a low-emissions, low-noise DC-DC converter, eliminating the need for a separate isolated power supply. This device meets ISO 11898-2:2016 physical layer standards and is optimized for CAN FD at 2 and 5 Mbps, while also supporting Classical CAN at 1 Mbps.



The transceiver features fault protection up to ±58V on the DC bus and a receiver common mode input voltage range of ±12V. It includes an additional 10 Mbps GPIO channel for diagnostics or monitoring. The integrated DC-DC converter offers high efficiency (47% typical) and provides an isolated output voltage accuracy of ±5% with an additional 20 mA output current capability.



Designed for robust operation, the ISOW1044DFMR has a wide operating temperature range of -40°C to 125°C and high Common Mode Transient Immunity (CMTI) of 100 kV/µs. It also features high ESD bus protection, including ±12 kV HBM and ±8 kV IEC 61000-4-2 contact discharge.

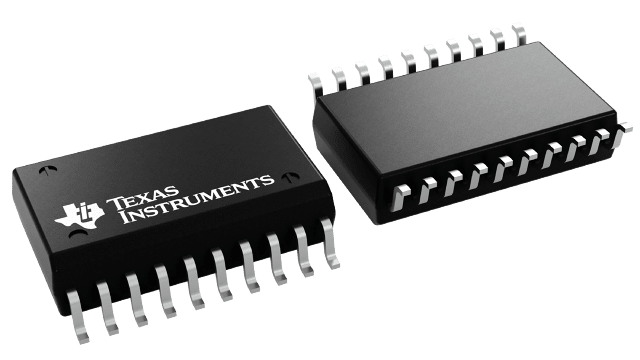

The device is supplied in a 20-pin wide SOIC package suitable for surface mounting. Safety-related certifications are planned, including VDE, UL, and IEC standards, making it suitable for industrial automation, building automation, and motor drive applications.

ISOW1044DFMR Quick Information

Product Type: CAN FD Transceiver
Canonical Name: ISOW1044 Isolated CAN FD Transceiver with Integrated DC-DC Converter
Subcategory: CAN FD Transceiver

ISOW1044DFMR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ISOW1044DFMR Estimated Pricing

Qty Low High
1+ $4.27 $4.27

Estimated market price range - modelled values for guidance only, not live distributor offers.

ISOW1044DFMR Features

  • Isolated CAN FD transceiver with integrated DC-DC.
  • Supports 1, 2, and 5 Mbps CAN data rates.
  • 5 kVrms withstand isolation rating.
  • Wide -40°C to 125°C operating temperature.
  • Low-emissions design meets CISPR 32 Class B.

ISOW1044DFMR Applications

  • Ideal for factory automation systems.
  • Suitable for building automation networks.
  • Used in industrial transport systems.
  • Applicable for solar inverters.
  • Designed for motor drive applications.

ISOW1044DFMR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum data rate for the ISOW1044DFMR?

The ISOW1044DFMR supports up to 5 Mbps for CAN FD and 1 Mbps for Classical CAN.

What is the isolation rating of the ISOW1044DFMR?

The ISOW1044DFMR has a withstand isolation voltage of 5000 VRMS.

What is the operating temperature range for this CAN transceiver?

The operating temperature range is -40°C to 125°C.

What package type is the ISOW1044DFMR supplied in?

The ISOW1044DFMR is supplied in a 20-SOIC package.

Does the ISOW1044DFMR meet RoHS standards?

Yes, the RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the ISOW1044DFMR?

The Moisture Sensitivity Level is 1 Unlimited.
