| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Current | |
| Data Rate | |
| Data Rate (Max) | |
| Delay Time | |
| ESD Protection | |
| Input | |
| Lead Spacing | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Output | |
| Signal Conditioning | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |

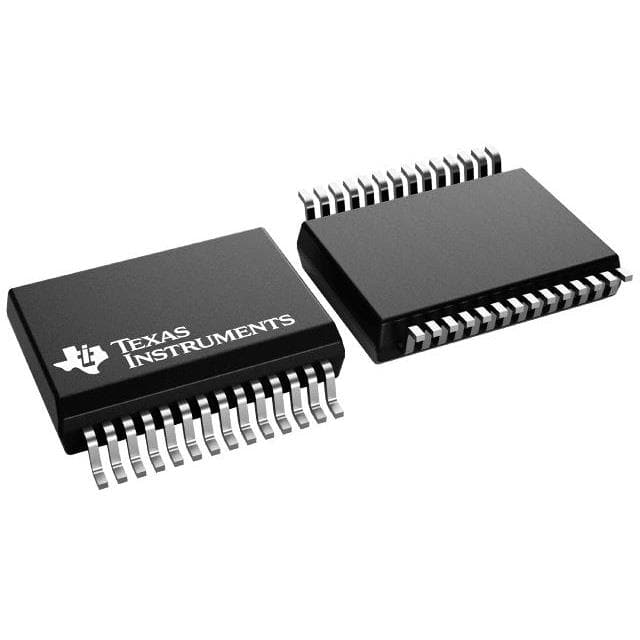

The ISOUSB211DPR from Texas Instruments is a high-performance, galvanically-isolated USB 2.0 repeater designed for robust signal integrity in demanding applications. It supports low speed (1.5 Mbps), full speed (12 Mbps), and high speed (480 Mbps) signaling rates, ensuring compatibility with a wide range of USB devices.
Key features include automatic speed and connection detection, programmable equalization to compensate for board trace loss, and support for USB On-The-Go (OTG) and Type-C Dual Role Port (DRP) designs with automatic role reversal. The device offers reinforced isolation with a withstand voltage of 5000 VRMS and a working voltage of 1500 VRMS, providing protection against high voltages and noise currents.
With a wide ambient temperature range of -40°C to +125°C and compliance with CISPR32 Class B emissions limits, the ISOUSB211DPR is suitable for industrial, medical, and grid infrastructure applications. It is available in a compact 28-SSOP package, facilitating integration into space-constrained designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.50 | $5.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ISOUSB211DPR supports low speed (1.5 Mbps), full speed (12 Mbps), and high speed (480 Mbps) signaling.
The device features a 5000 VRMS isolation rating.
The operating temperature range is -40°C to +125°C.
The ISOUSB211DPR is available in a 28-SSOP package.
Yes, it meets CISPR32 Class B emissions limits.
