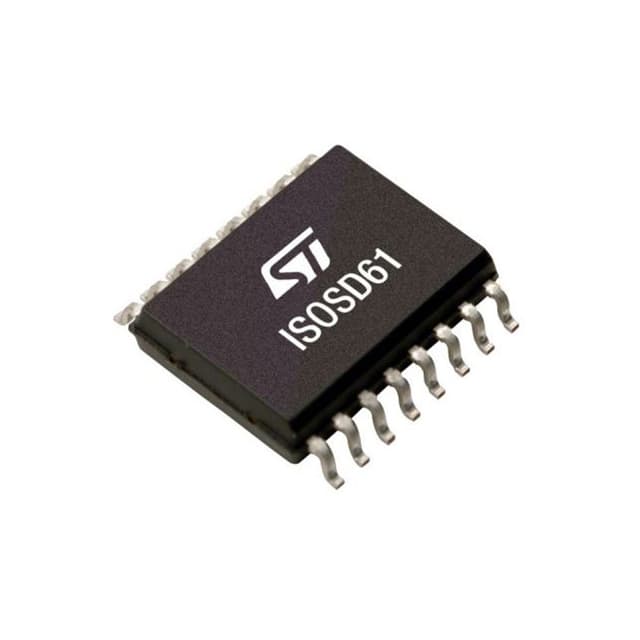

ISOSD61TR The STMicroelectronics ISOSD61TR is a 16-bit isolated sigma-delta modulator. It features an LVDS data interface and operates over a wide temperature range.
Mfr Part #:

ISOSD61TR

Available from 1 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STMicroelectronics ISOSD61TR is a 16-bit isolated sigma-delta modulator. It features an LVDS data interface and operates over a wide temperature range.
✓ Total Stock: 1,000 pcs

ISOSD61TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ISOSD61TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Data Interface
Lead Spacing
Mounting Type
Number of Channels
Operating Temperature
Resolution (Bits)
Sampling Rate (Per Second)
Supplier Device Package
Tape & Reel
Type
Voltage
Voltage Supply Source
View Similar Products (0)

ISOSD61TR Description

Short technical summary and product information.

The ISOSD61TR from STMicroelectronics is a 16-bit isolated sigma-delta modulator designed for specialized data acquisition applications. This component offers a high resolution of 16 bits and utilizes an LVDS data interface for efficient signal transmission.



Operating within a voltage range of 3V to 5.5V, the ISOSD61TR is suitable for various power supply configurations, supporting single supply operation. Its robust design allows it to function reliably across an extended temperature range of -40°C to 125°C, making it suitable for demanding environments.



The device is available in a 16-SOIC package, designed for surface mounting. This packaging and mounting type facilitate integration into compact electronic assemblies. The ISOSD61TR is identified by its part number ISOSD61TR and is manufactured by STMicroelectronics.



Key specifications include a sampling rate of 25M samples per second and a single channel configuration. The modulator type is specifically designed for isolated sigma-delta applications, providing enhanced signal integrity in noisy environments.

ISOSD61TR Quick Information

Product Type: Sigma-Delta Modulator
Canonical Name: 16-Bit Isolated Sigma-Delta Modulator
Subcategory: ADCsDACs - Special Purpose

ISOSD61TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ISOSD61TR Features

  • 16-bit resolution sigma-delta modulator.
  • Isolated signal processing.
  • LVDS data interface.
  • Wide 3V to 5.5V operating voltage.
  • Extended -40°C to 125°C temperature range.

ISOSD61TR Applications

  • Used in isolated data acquisition systems.
  • Suitable for industrial control applications.
  • Ideal for high-noise environments.
  • Precision measurement circuits.

ISOSD61TR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the ISOSD61TR?

-40°C to 125°C

What is the resolution of the ISOSD61TR modulator?

16 bits

What is the sampling rate of the ISOSD61TR?

25M samples per second

What type of data interface does the ISOSD61TR use?

LVDS

What is the operating voltage for the ISOSD61TR?

3V to 5.5V

What package is the ISOSD61TR supplied in?

16-SOIC (0.295", 7.50mm Width)
